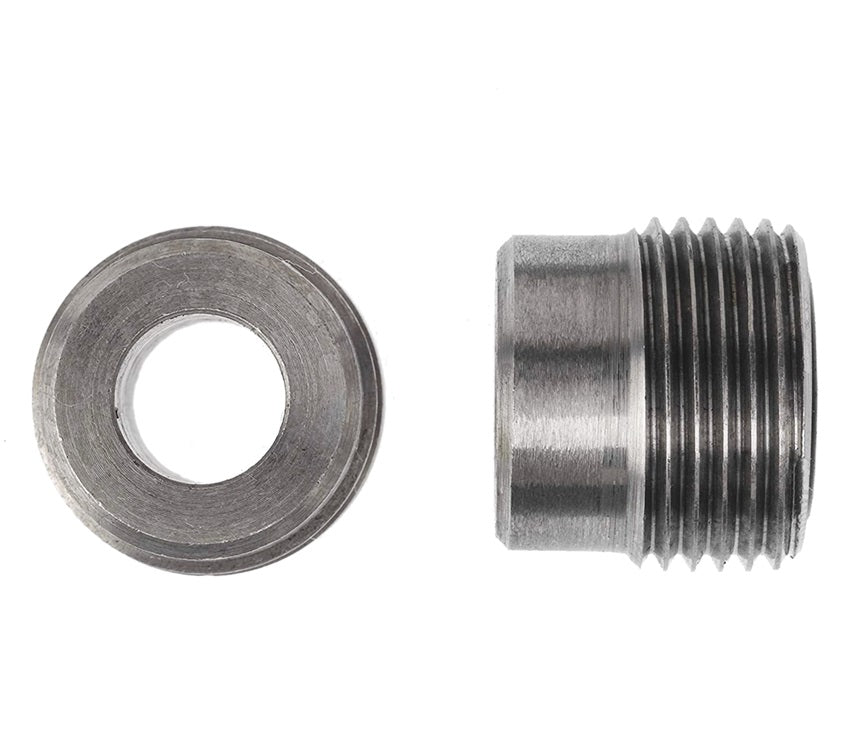

FS0403-TS-16-16 by Brennan Inc. | -16 Bore x -16 Male Face Seal Tube Spud | Steel

FS0403-TS-16-16 by Brennan Inc. | -16 Bore x -16 Male Face Seal Tube Spud | Steel

Sale price$22.16

Brennan Inc.
O-Ring Face Seal Fittings: FS0403-TS - Bore x Male Face Seal Tube Spud
Buy More, Save More!
Quantity Price Each
10–39 $20.83
40–79 $18.84
80+ $16.62
Discounts applied in cart/checkout.

Product Data:

Material(s):
  • Steel
Part Number Material E*Diameter AThread EDrill ADrill L1Length LLength
FS0403-TS-06-06 Steel 0.594" 11/16-16" 0.264" 0.264" 0.340" 0.751"
FS0403-TS-08-08 Steel 0.719" 13/16-16" 0.378" 0.378" 0.292" 0.694"
FS0403-TS-12-12 Steel 1.069" 1-3/16-12" 0.609" 0.609" 0.408" 0.945"
FS0403-TS-16-16 Steel 1.319" 1-7/16-12" 0.811" 0.811" 0.473" 1.029"

* E dimensions are for silver brazing.(SAE J1453)

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
