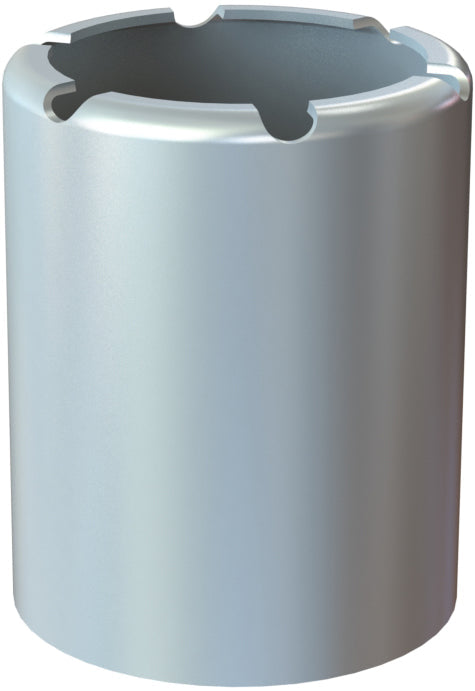

FPS200236L by Campbell Fittings | Ferrule | 2" Hose Size | 2-36/64" Ferrule I.D. | Long | Plated Steel

FPS200236L by Campbell Fittings | Ferrule | 2" Hose Size | 2-36/64" Ferrule I.D. | Long | Plated Steel

Sale price$22.75

by Campbell
Ferrules:for use with products of Long Crimpnology Nipples and Viton® Seal Ground Joints and Male Stems
Buy More, Save More!
Quantity Price Each
10–39 $21.39
40–79 $19.34
80+ $17.06
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Plated Steel
Special Properties:
  • Long
CampbellCrimpnology™: Crimpnology refers to all of the technology involved in crimping: The integrated design of every fitting, coupling, ferrule, and sleeve; the crimp procedures; crimp specifications; and crimp training & support.
Features and Benefits: Crimpnology offers the following “7 Essentials” for crimping safe, repeatable, performance-rated hose systems:
  • Interlock groove on all fittings and couplings is compatible with the turn-in end of the ferrule to ensure a 360° ferrule-to-fitting interlock.
  • Serrations specifically designed for crimping provide maximum hose retention without potential tube failure.
  • Shank length and ferrule/sleeve length are matched to maximize retention and to avoid hose tube or cover damage.
  • Detailed crimping procedures ensure appropriate crimp specification is derived for each hose and fitting combination.
  • On-site crimping training by a Hose System Specialist is offered by Campbell Fittings to assist distributor personnel.
  • A daytime, toll-free “hotline” is manned by a Campbell Hose System Specialist to assist in all aspects of crimping.
Performance Rated: All Campbell pressure ratings are established and verified by hydrostatic testing to a 4x safety factor where applicable (see page 1 for pressure rating information). Test data and information regarding various combinations of hoses and fittings are available upon request.
  • Note: The pressure ratings in this catalog are valid only when using all Campbell parts. For safety and quality assurance, always proof test hose assembly according to NAHAD guidelines.
Part Number Hose Size Ferrules ID
FPS050100S 1/2" 1"
FPS050104S 1/2" 1-4/64"
FPS050108S 1/2" 1-8/64"
FPS125152L 1-1/4" 1-52/64"
FPS125156L 1-1/4" 1-56/64"
FPS125160L 1-1/4" 1-60/64"
FPS150160L 1-1/2" 1-XX/64"
FPS150200L 1-1/2" 2"
FPS150204L 1-1/2" 2-4/64"
FPS150208L 1-1/2" 2-8/64"
FPS150212L 1-1/2" 2-12/64"
FPS150216L 1-1/2" 2-16/64"
FPS150220L 1-1/2" 2-20/64"
FPS150224L 1-1/2" 2-24/64"
FPS200232L 2" 2-32/64"
FPS200236L 2" 2-36/64"
FPS200240L 2" 2-40/64"
FPS200244L 2" 2-44/64"
FPS200248L 2" 2-48/64"
FPS200252L 2" 2-52/64"
FPS200256L 2" 2-56/64"
FPS200260L 2" 2-60/64"
FPS250308L 2-1/2" 3-8/64"
FPS250312L 2-1/2" 3-12/64"
FPS250316L 2-1/2" 3-16/64"
FPS250320L 2-1/2" 3-20/64"
FPS250328L 2-1/2" 3-28/64"
FPS300336L 3" 3-36/64"
FPS300340L 3" 3-40/64"
FPS300344L 3" 3-44/64"
FPS300348L 3" 3-78/64"
FPS300352L 3" 3-52/64"
FPS300356L 3" 3-56/64"
FPS300360L 3" 3-60/64"
FPS300400L 3" 4"
FPS300408L 3" 4-8/64"
FPS300416L 3" 4-16/64"
FPS400440L 4" 4-40/64"
FPS400444L 4" 4-4/64"
FPS400448L 4" 4-48/64"
FPS400452L 4" 4-52/64"
FPS400456L 4" 4-56/64"
FPS400460L 4" 4-60/64"
FPS400500L 4" 5"
FPS400504L 4" 5-4/64"
FPS400512L 4" 5-12/64"
FPS400520L 4" 5-20/64"
FPS400528L 4" 5-28/64"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
