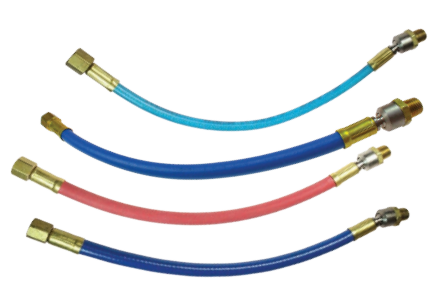

FP06244BS by Coilhose | Lead-In Hose | 3/8" Hose ID | 1/4" Female NPT Thread x 1/4" Male Ball Swivel | Blue | Flexeel | 24" Length

FP06244BS by Coilhose | Lead-In Hose | 3/8" Hose ID | 1/4" Female NPT Thread x 1/4" Male Ball Swivel | Blue | Flexeel | 24" Length

Sale price$33.87
Coilhose Pneumatics - Straight Hose - Ball Swivel Lead-In Hose
Buy More, Save More!
Quantity Price Each
10–39 $31.84
40–79 $28.79
80+ $25.40
Discounts applied in cart/checkout.

Product Data:

Brand:
  • FLEXEEL
Color(s):
  • Blue
Material(s):
  • Polyurethane
Overview:
  • A Ball Swivel Lead-In Hose helps eliminate stress and wear points caused by bending and pulling. Additionally, when used between the air tool and coupler, a lead-in hose will extend the life of the coupler by acting as a shock absorber and protecting the coupler against tool vibration. It also provides an easier and wider range of motion, reducing worker fatigue while increasing productivity. The end result is a safer and more economical hose assembly. Fittings are male ball swivel and female rigid.
  • FLEXEEL: Flexeel Lead-Ins are composed of lightweight, reinforced polyurethane hose. These lead-ins are designed to isolate high-vibration tools such as impact guns and air hammers from couplers. The reinforced polyurethane composition withstands oils, abrasion, and kinking.
  • Neoprene: Neoprene Lead-Ins are constructed of oil-resistant neoprene rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life.
  • Red Rubber: Rubber Lead-Ins are constructed of EPDM rubber hose. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life.
  • Thermoplastic: Thermoplastic Lead-Ins are composed of reinforced PVC. Installing a lead-in will isolate high-vibration tools such as impact guns and air hammers from couplers, extending their life. Thermoplastic PVC provides increased working pressure and oil resistance.
Features:
  • Shock absorbing whip hose.
  • Ball swivel Fitting Increases User's Range of Motion & Comfort
  • Maximum working pressure:
    • FLEXEEL - 200 PSI
    • Neoprene - 300 PSI
    • Red Rubber - 250 PSI
    • Thermoplastic - 300 PSI
  • Composed of Thermoplastic Hose
  • Made in USA

Part No.
FLEXEEL		 Part No.
Neoprene		 Part No.
Red Rubber		 Part No.
Thermoplastic		 Hose ID Fitting Hose Length
FP0412BS RP0412BS HP0412BS VP0412BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP0418BS RP0418BS HP0418BS VP0418BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP0424BS RP0424BS HP0424BS VP0424BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP0430BS RP0430BS HP0430BS VP0430BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP0436BS RP0436BS HP0436BS VP0436BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP0460BS RP0460BS HP0460BS VP0460BS 1/4" 1/4" FPT x 1/4" Male Ball Swivel 60"

FP0512BS RP0512BS HP0512BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP0518BS RP0518BS HP0518BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP0524BS RP0524BS HP0524BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP0530BS RP0530BS HP0530BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP0536BS RP0536BS HP0536BS - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP0560BS RP0560BS - - 5/16" 1/4" FPT x 1/4" Male Ball Swivel 60"

FP06124BS RP06124BS HP06124BS VP06124BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 12"
FP06184BS RP06184BS HP06184BS VP06184BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 18"
FP06244BS RP06244BS HP06244BS VP06244BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 24"
FP06304BS RP06304BS HP06304BS VP06304BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 30"
FP06364BS RP06364BS HP06364BS VP06364BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 36"
FP06604BS RP06604BS HP06604BS VP06604BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 60"
FP06724BS RP06724BS HP06724BS VP06724BS 3/8" 1/4" FPT x 1/4" Male Ball Swivel 72"

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
