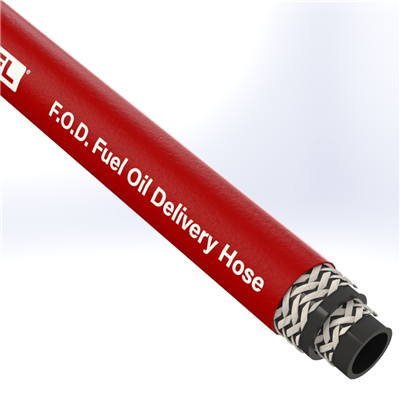

FOD-32-100- by Texcel | TEX-F.O.D. Series | Fuel Oil Delivery Hose | 2" Hose ID | 250 PSI | Red
Texcel
TEX-F.O.D. Series | Fuel Oil Delivery Hose
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,218.36 |
| 8–14 | $1,166.52 |
| 15+ | $1,036.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Designed for the transfer and delivery of fuels, oils, kerosene, diesel and other petroleum-based products for home, commercial, marine and industrial service. Its braided synthetic reinforcement allows for extreme flexibility, reduced twisting and ease of handling, while maintaining kink resistance. Drivers will prefer this hose because of its static conductive tube, abrasion and oil resistance. | Tube: | Black, NBR (ARPM Class A) |
| Cover: | Black, NBR (ARPM Class A) | Reinforcement: | 2 braided polyester cords |
| Safety Factor: | 4:1 | Temperature: | -40°F to +180°F |
| Branding: | TEXCEL F.Hose OD Fuel Oil Delivery Hose - 250PSI WP LOT (white ink letters) | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Lbs./ft |
|---|---|---|---|---|
| FOD-16-300R | 1" | 1-32/64" | 250 psi | 0.65 lbs |
| FOD-20-175 | 1-1/4" | 1-51/64" | 250 psi | 0.87 lbs |
| FOD-22-175 | 1-3/8" | 1-56/64" | 250 psi | 0.91 lbs |
| FOD-24-175 | 1-1/2" | 2-6/64" | 250 psi | 1.12 lbs |
| FOD-32-100 | 2" | 2-41/64" | 200 psi | 1.38 lbs |
