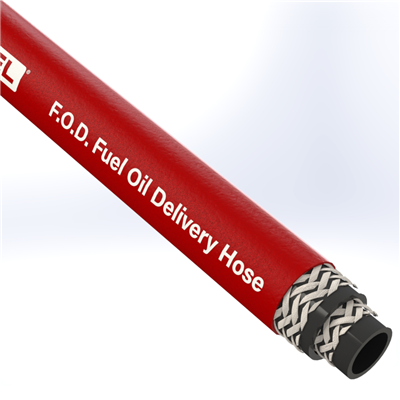

FOD-20-CL by Texcel | TEX-F.O.D. Series | Fuel Oil Delivery Hose | 1-1/4" Hose ID | 250 PSI | Red

Sale price$1,260.32

Texcel
TEX-F.O.D. Series | Fuel Oil Delivery Hose


Hose Length: 100' Length
Buy More, Save More!
Quantity Price Each
4–7 $23.81
8–14 $22.80
15+ $20.26
Discounts applied in cart/checkout.

Product Data:

Series:
  • TEX-F.O.D. Series
Color(s):
  • Red
Internal Diameter:
  • 1.25in
Technical Data:
Description: Designed for the transfer and delivery of fuels, oils, kerosene, diesel and other petroleum-based products for home, commercial, marine and industrial service. Its braided synthetic reinforcement allows for extreme flexibility, reduced twisting and ease of handling, while maintaining kink resistance. Drivers will prefer this hose because of its static conductive tube, abrasion and oil resistance. Tube: Black, NBR (ARPM Class A)
Cover: Black, NBR (ARPM Class A) Reinforcement: 2 braided polyester cords
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL F.Hose OD Fuel Oil Delivery Hose - 250PSI WP LOT (white ink letters)
Part Number Hose ID Hose OD Working Pressure (psi) Lbs./ft
FOD-16 1" 1-32/64" 250 psi 0.65 lbs
FOD-20 1-1/4" 1-51/64" 250 psi 0.87 lbs
FOD-22 1-3/8" 1-56/64" 250 psi 0.91 lbs
FOD-24 1-1/2" 2-6/64" 250 psi 1.12 lbs
FOD-32 2" 2-41/64" 200 psi 1.38 lbs
