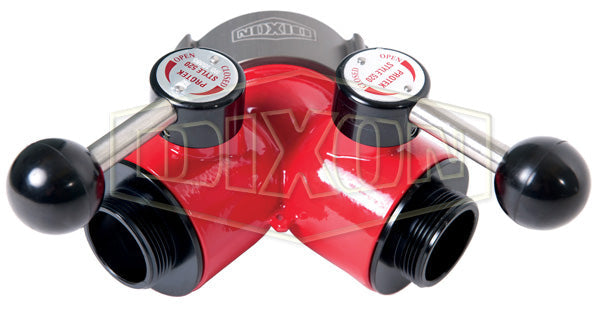

FMBV25F25F Dixon Aluminum 2-Way Ball Valve - 2-1/2" Female NST(NH) Swivel Inlet x Two 2-1/2" Male NST(NH) Outlets

FMBV25F25F Dixon Aluminum 2-Way Ball Valve - 2-1/2" Female NST(NH) Swivel Inlet x Two 2-1/2" Male NST(NH) Outlets

Sale price$1,381.98

Dixon Fire Fittings
2-Way Ball Valves

This valve will feed two smaller attack lines from one large diameter supply line. The 2-1/2" outlet is a gated ball valve resulting in a safe controlled flow of water.

Can be used to distribute water in the opposite direction.
Buy More, Save More!
Quantity Price Each
4–7 $1,299.06
8–14 $1,243.78
15+ $1,105.58
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 2-1/2in Female NST
  • 2-1/2in Male NST
  • 2-1/2in Male NST
  • Some Ends Match
Material(s):
  • Aluminum
Features:
  • High strength aluminum alloy, 356-T6
  • Finish hardcoat anodized- minimum thickness 0.001"
  • Comes complete with a carrying handle.
  • Working Pressure: 280 PSI
Part Number Inlet (Two) Outlets Weight
FMBV15F15F 1-1/2" Female NST(NH) Swivel 1-1/2" Male NST(NH) Swivel -
FMBV15S15S 1-1/2" Female NPSH Swivel 1-1/2" Male NPSH Swivel 2.3930
FMBV25F15F 2-1/2" Female NST(NH) Swivel 1-1/2" Male NST(NH) Swivel 5.5000
FMBV25F25F 2-1/2" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel 14.2000
FMBV40F25F 4" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel 17.3930
FMBV45F25F 4-1/2" Female NST(NH) Swivel 2-1/2" Male NST(NH) Swivel -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
