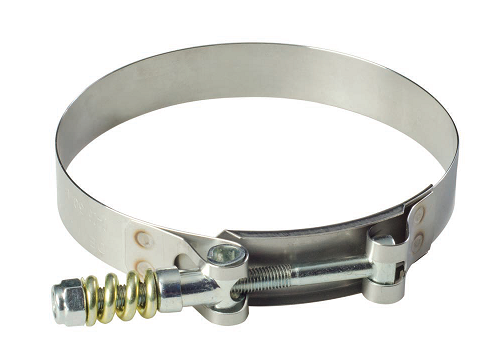

FLX2588-0506 by FlexFab | Series 2588 | Spring-Loaded T-Bolt Clamps | 5.0625" Min Dia | 5.375" Max Dia | 10 Per pack
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
Clamps & Connectors
Series 2588 Spring-Loaded T-Bolt Clamps
Spring-loaded T-bolt clamps compensate for expansion and contraction in hose lines: when temperature or pressure changes, they adjust to keep constant band tension.
1
What are these clamps used for?
- Silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90° and 45° elbows and SIL-FAB ducting
- All types of hose line assemblies subject to temperature and pressure changes
- Resists salt water and may be used in marine applications
2
What are the key specifications?
Material
All 316 grade stainless steel
Hex Head
5/16"
Band Width
3/4"
Pack Size
10 clamps per pack
3
Which sizes are available?
| Part Number | Min. Diameter | Max. Diameter | Pack Size | Weight per 10 |
|---|---|---|---|---|
| FLX2588-0306 | 3.0625" | 3.375" | 10 | 2 lbs |
| FLX2588-0356 | 3.562" | 3.875" | 10 | 2 lbs |
| FLX2588-0406 | 4.0625" | 4.375" | 10 | 2 lbs |
| FLX2588-0456 | 4.562" | 4.875" | 10 | 2 lbs |
| FLX2588-0506 | 5.0625" | 5.375" | 10 | 2 lbs |
Specifications for reference only.
How is this product sold?
Sold in packs of 10.
Additional Product Data:
Series:
Material(s):
Minimum Clamp I.D.:
5.0652"
Maximum Clamp I.D.:
5.375"
