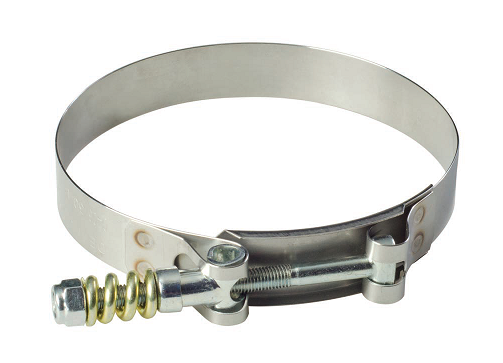

FLX2588-0306 by FlexFab | Series 2588 | Spring-Loaded T-Bolt clamps | 3.0625" Min Dia | 3.375" Max Dia | 10 Per pack

FLX2588-0306 by FlexFab | Series 2588 | Spring-Loaded T-Bolt clamps | 3.0625" Min Dia | 3.375" Max Dia | 10 Per pack

Sale price$102.82

Package Quantity: 10 EA

Buy more, save moreDiscounts applied in cart/checkout.
Overview:
  • Spring-Loaded T-bolt clamps are designed to compensate for fluctuations in all types of hose line assemblies. When temperature and/or pressure changes cause hose lines to expand or contract, Spring-Loaded T-bolt Clamps adjust accordingly to provide constant band tension.
Specifications:
  • All 316 grade stainless steel Spring-Loaded T-bolt clamps
  • Hex Head: 5/16"
  • Band Width: 3/4"
Applications:
  • Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting
  • Resists salt water and may be used in marine applications
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs - Per 10
FLX2588-0306 3.0625" 3.375" 10 Pieces 2 lbs
FLX2588-0356 3.562" 3.875" 10 Pieces 2 lbs
FLX2588-0406 4.0625" 4.375" 10 Pieces 2 lbs
FLX2588-0456 4.562" 4.875" 10 Pieces 2 lbs
FLX2588-0506 5.0652" 5.375" 10 Pieces 2 lbs
*Specifications for reference only.

Additional Product Data:

Series:
  • Series 2588
Material(s):
  • 316 Stainless Steel
Minimum Clamp I.D.:

3.0625"

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
