FLX2584-0762 by FlexFab | Series 2584 | Constant Tension Clamps | 6.75" Min Dia | 7.63" Max Dia | 10 Per pack
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
Clamps & Connectors

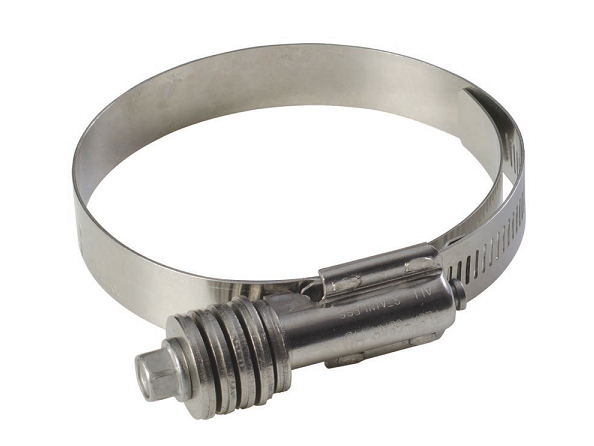

Series 2584 Constant Tension Clamps
Lined constant tension clamps with Belleville springs, built to respond to constant temperature fluctuations and provide a uniform 360° seal.
1
What are these clamps used for?
- Recommended for silicone coolant and heater hose, marine hose and silicone tubing
- Resists salt water and may be used in marine applications
2
What are the key specifications?
Material
All 300 grade stainless steel, lined
Hex Head
3/8"
Band Width
5/8"
Pack Size
10 clamps per pack
3
What are the main product features?
- Belleville spring construction — larger, heavy-gauge, precision-formed springs provide higher band tension and adjustment for a more dependable seal.
- Inner liner — protects against shearing of the hose surface.
- Uniform 360° seal
4
How should these clamps be installed?
Worm gear or constant torque type stainless steel clamps with an inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted or wire type clamps.
5
Which sizes are available?
| Part Number | Min. Diameter | Max. Diameter | Pack Size | Weight per 10 |
|---|---|---|---|---|
| FLX2584-0175 | 1.00" | 1.75" | 10 | 2 lbs |
| FLX2584-0212 | 1.25" | 2.13" | 10 | 2 lbs |
| FLX2584-0262 | 1.75" | 2.63" | 10 | 2 lbs |
| FLX2584-0312 | 2.25" | 3.13" | 10 | 2 lbs |
| FLX2584-0362 | 2.75" | 3.63" | 10 | 2 lbs |
| FLX2584-0412 | 3.25" | 4.13" | 10 | 2.5 lbs |
| FLX2584-0462 | 3.75" | 4.63" | 10 | 2.5 lbs |
| FLX2584-0512 | 4.25" | 5.13" | 10 | 2.5 lbs |
| FLX2584-0562 | 4.75" | 5.63" | 10 | 2.5 lbs |
| FLX2584-0612 | 5.25" | 6.13" | 10 | 2.5 lbs |
| FLX2584-0662 | 5.75" | 6.63" | 10 | 3 lbs |
| FLX2584-0712 | 6.25" | 7.13" | 10 | 3 lbs |
| FLX2584-0762 | 6.75" | 7.63" | 10 | 3 lbs |
| FLX2584-0812 | 7.25" | 8.13" | 10 | 3 lbs |
| FLX2584-0862 | 7.75" | 8.63" | 10 | 3 lbs |
| FLX2584-0912 | 8.25" | 9.13" | 10 | 3.5 lbs |
Specifications for reference only.
How is this product sold?
Sold in packs of 10.
Additional Product Data:
Series:
Material(s):
Minimum Clamp I.D.:
6.75"
Maximum Clamp I.D.:
7.63"
