FLX2583-0163 by FlexFab | Series 2583 | T-Bolt Clamps | 1.63" Min Dia | 1.88" Max Dia | 10 Per pack
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
Clamps & Connectors
Series 2583 T-Bolt Clamps

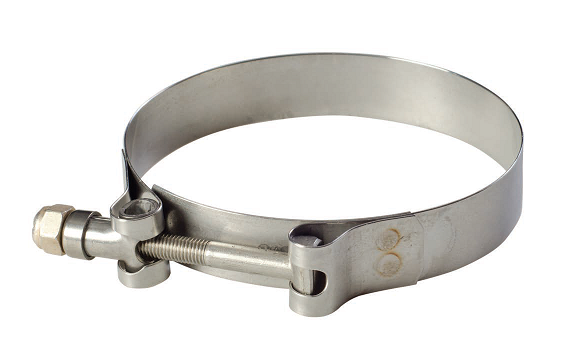

Heavy-duty T-bolt clamps with a 3/4" wide welded stainless steel band, providing uniform sealing pressure for a positive, reliable seal in high-vibration applications.
1
What are these clamps used for?
- Recommended for charge air connectors and turbocharger sleeves
- Silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90° and 45° elbows and SIL-FAB ducting
- High-vibration applications in heavy-duty trucks, industrial machinery, off-road equipment, and agricultural irrigation equipment and machinery
- Resists salt water and may be used in marine applications
2
What are the key specifications?
Material
All 300 grade stainless steel
Hex Head
7/16" with nylon insert
Band Width
3/4"
Pack Size
10 clamps per pack
3
How should these clamps be installed?
Use only T-bolt style clamps on CAC and turbocharger hose. Constant torque T-bolt style clamps may help retain clamp load. Torque clamps to 70–75 inch-lbs.
4
Which sizes are available?
| Part Number | Min. Diameter | Max. Diameter | Pack Size | Weight per 10 |
|---|---|---|---|---|
| FLX2583-0138 | 1.38" | 1.56" | 10 | 1 lbs |
| FLX2583-0150 | 1.50" | 1.63" | 10 | 1.5 lbs |
| FLX2583-0163 | 1.63" | 1.88" | 10 | 1.5 lbs |
| FLX2583-0175 | 1.75" | 2.00" | 10 | 1.5 lbs |
| FLX2583-0188 | 1.88" | 2.19" | 10 | 1.5 lbs |
| FLX2583-0200 | 2.00" | 2.31" | 10 | 1.5 lbs |
| FLX2583-0213 | 2.13" | 2.44" | 10 | 1.5 lbs |
| FLX2583-0225 | 2.25" | 2.56" | 10 | 1.5 lbs |
| FLX2583-0238 | 2.38" | 2.69" | 10 | 1.5 lbs |
| FLX2583-0250 | 2.50" | 2.81" | 10 | 1.5 lbs |
| FLX2583-0263 | 2.63" | 2.94" | 10 | 1.5 lbs |
| FLX2583-0275 | 2.75" | 3.06" | 10 | 1.5 lbs |
| FLX2583-0288 | 2.88" | 3.19" | 10 | 1.5 lbs |
| FLX2583-0300 | 3.00" | 3.31" | 10 | 1.5 lbs |
| FLX2583-0313 | 3.13" | 3.44" | 10 | 1.5 lbs |
| FLX2583-0325 | 3.25" | 3.56" | 10 | 1.5 lbs |
| FLX2583-0338 | 3.38" | 3.69" | 10 | 1.5 lbs |
| FLX2583-0350 | 3.50" | 3.81" | 10 | 1.5 lbs |
| FLX2583-0363 | 3.63" | 3.94" | 10 | 1.5 lbs |
| FLX2583-0375 | 3.75" | 4.06" | 10 | 1.5 lbs |
| FLX2583-0400 | 4.00" | 4.31" | 10 | 2 lbs |
| FLX2583-0425 | 4.25" | 4.56" | 10 | 2 lbs |
| FLX2583-0450 | 4.50" | 4.81" | 10 | 2 lbs |
| FLX2583-0475 | 4.75" | 5.06" | 10 | 2 lbs |
| FLX2583-0500 | 5.00" | 5.31" | 10 | 2 lbs |
Specifications for reference only.
How is this product sold?
Sold in packs of 10.
Additional Product Data:
Series:
Material(s):
Minimum Clamp I.D.:
1.63"
Maximum Clamp I.D.:
1.88"
