FLX2582-0048 by FlexFab | Series 2582 | Lined Worm Gear Clamps | 2.56" Min Dia | 3.50" Max Dia | 10 Per pack
Package Quantity: 10 EA
Buy more, save moreDiscounts applied in cart/checkout.
Clamps & Connectors

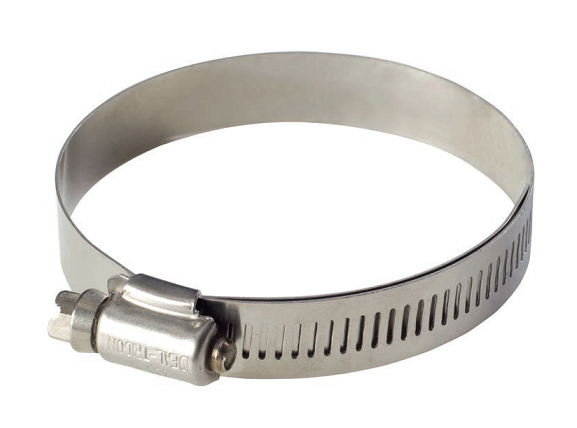

Series 2582 Lined Worm Gear Clamps
Lined clamps designed for silicone rubber and other soft hose. The liner protects the hose surface and keeps it from extruding or shearing through the band notches as the clamp is tightened.
1
What are these clamps used for?
- Recommended for silicone coolant and heater hose, marine hose and silicone tubing
- Resists salt water and may be used in marine applications
2
What are the key specifications?
Material
All 300 grade stainless steel
Hex Head
5/16"
Band Width
9/16"
Pack Size
10 clamps per pack
3
How should these clamps be installed?
Worm gear or constant torque type stainless steel clamps with an inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted or wire type clamps.
4
Which sizes are available?
| Part Number | Min. Diameter | Max. Diameter | Pack Size | Weight per 10 |
|---|---|---|---|---|
| FLX2582-0006 | 0.50" | 0.88" | 10 | 0.5 lbs |
| FLX2582-0008 | 0.63" | 1.00" | 10 | 0.5 lbs |
| FLX2582-0010 | 0.75" | 1.06" | 10 | 0.5 lbs |
| FLX2582-0012 | 0.88" | 1.25" | 10 | 0.5 lbs |
| FLX2582-0016 | 1.00" | 1.50" | 10 | 0.5 lbs |
| FLX2582-0020 | 1.13" | 1.75" | 10 | 0.5 lbs |
| FLX2582-0024 | 1.25" | 2.00" | 10 | 0.5 lbs |
| FLX2582-0028 | 1.31" | 2.25" | 10 | 0.5 lbs |
| FLX2582-0032 | 1.56" | 2.50" | 10 | 0.5 lbs |
| FLX2582-0036 | 1.81" | 2.75" | 10 | 0.5 lbs |
| FLX2582-0040 | 2.06" | 3.00" | 10 | 0.5 lbs |
| FLX2582-0044 | 2.31" | 3.25" | 10 | 0.5 lbs |
| FLX2582-0048 | 2.56" | 3.50" | 10 | 0.5 lbs |
| FLX2582-0052 | 2.81" | 3.75" | 10 | 0.5 lbs |
| FLX2582-0056 | 3.06" | 4.00" | 10 | 0.5 lbs |
| FLX2582-0060 | 3.31" | 4.25" | 10 | 0.5 lbs |
| FLX2582-0064 | 3.56" | 4.50" | 10 | 1 lbs |
| FLX2582-0072 | 4.06" | 5.00" | 10 | 1 lbs |
Specifications for reference only.
How is this product sold?
Sold in packs of 10.
Additional Product Data:
Series:
Material(s):
Minimum Clamp I.D.:
2.56"
Maximum Clamp I.D.:
3.5"
