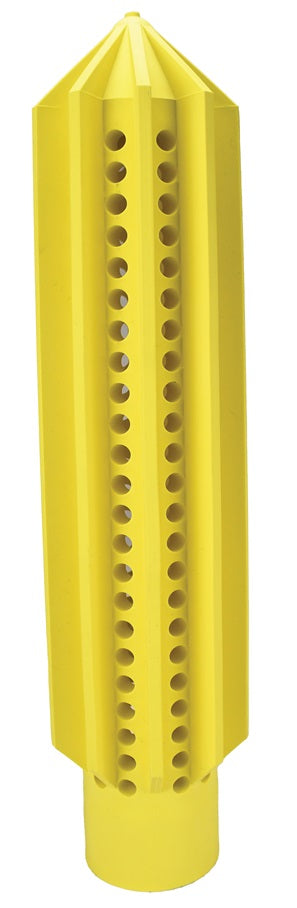

FLSS200-NPT8 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 8mm Holes | 63mm Width | 370mm Length
FLSS200-NPT8 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 8mm Holes | 63mm Width | 370mm Length
FLSS200-NPT8 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 8mm Holes | 63mm Width | 370mm Length

FLSS200-NPT8 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 8mm Holes | 63mm Width | 370mm Length

Sale price$187.24
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Keeps your pumps running longer, saving you time and money.
  • Advanced flexible dewatering and filtration devices for harsh environments.
  • Designed to survive in hostile and high traffic environments.
  • Can withstand extreme conditions such as being run over by vehicles and machinery.
  • Costs less than conventional strainers, saving time in cleaning and replacements.
  • Vulcanized polymers eliminate sharp edges.

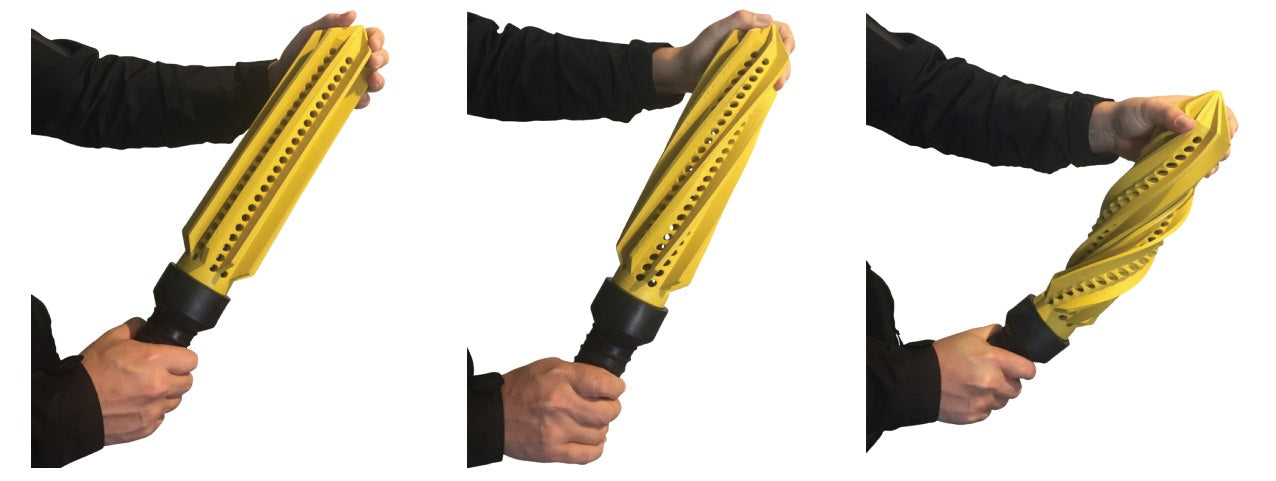

  • Lightweight and flexible design provides less impact when in contact with personnel or machinery.
  • Quick and easy to clean.
  • Protect the pump leading to less downtime, personnel intervention, and repair and maintenance.
Material:
  • Elastomeric polymers
Specifications:
  • Flow rate: 224 GPM
  • Minimum temperature: -87°F (-66°C)
  • Maximum temperatur e: 212°F (100°C)
Approval:
  • Manufactured in accordance to ISO:9001
Flexible Strainer with Hose Barb
Part Number Connection Size Hose Barb Hole Width Length
FLSS200 Hose Barb 2" 2" 8mm 3-1/2" 14.57"
FLSS200 Without Hose Barb 2" - 8mm 3-1/2" 14.57"
Flexible Strainer with Female BSP Threads
Part Number Connection Size Thread Hole Width Length
FLSS200-BSP3 Female BSP 2" 1-1/2" 3mm 63mm 370mm
FLSS200-BSP5 Female BSP 2" 1-1/2" 5mm 63mm 370mm
FLSS200-BSP8 Female BSP 2" 1-1/2" 8mm 63mm 370mm

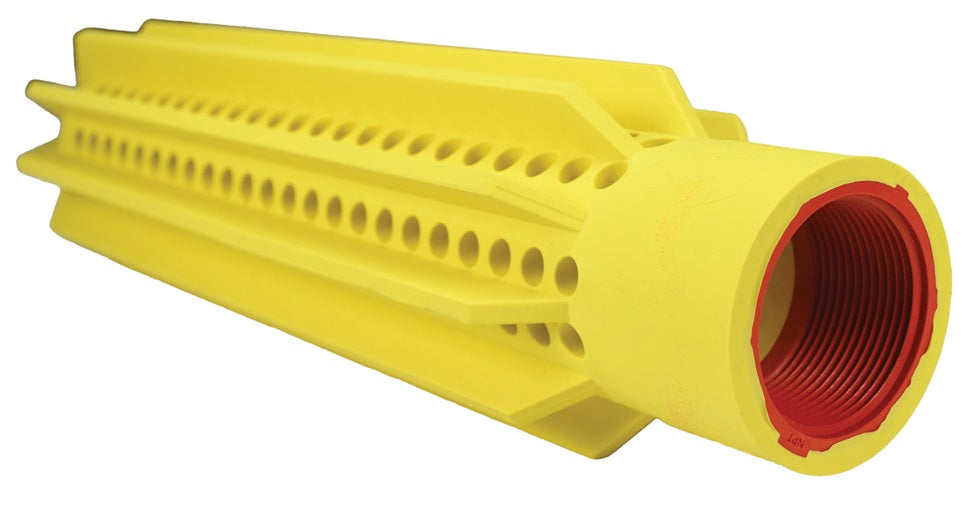

Flexible Strainer with Female NPT Threads
Part Number Connection Size Thread Hole Width Length
FLSS200-NPT3 Female NPT 2" 1-1/2" 3mm 63mm 370mm
FLSS200-NPT5 Female NPT 2" 1-1/2" 5mm 63mm 370mm
FLSS200-NPT8 Female NPT 2" 1-1/2" 8mm 63mm 370mm
