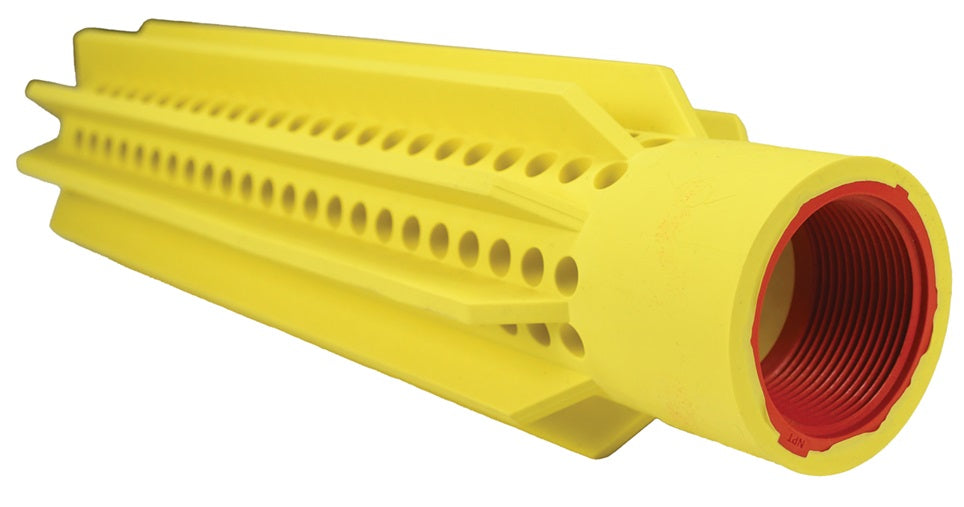

FLSS200-NPT3 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 3mm Holes | 63mm Width | 370mm Length
FLSS200-NPT3 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 3mm Holes | 63mm Width | 370mm Length
FLSS200-NPT3 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 3mm Holes | 63mm Width | 370mm Length

FLSS200-NPT3 by Dixon Valve | Flexible Strainer | 2" Size | 1-1/2" Female NPT | 3mm Holes | 63mm Width | 370mm Length

Sale price$187.31

Dixon Valve
Flexible Strainer

Used on the submerged end of the suction hose to prevent debris from entering the pump during operation.

Applications: Open or underground areas, roadways, mining, or any area affected by excess water where pumping is required.
Buy More, Save More!
Quantity Price Each
5–19 $176.07
20–59 $159.21
60+ $140.48
Discounts applied in cart/checkout.

Product Data:
Features:
  • Keeps your pumps running longer, saving you time and money.
  • Advanced flexible dewatering and filtration devices for harsh environments.
  • Designed to survive in hostile and high traffic environments.
  • Can withstand extreme conditions such as being run over by vehicles and machinery.
  • Costs less than conventional strainers, saving time in cleaning and replacements.
  • Vulcanized polymers eliminate sharp edges.

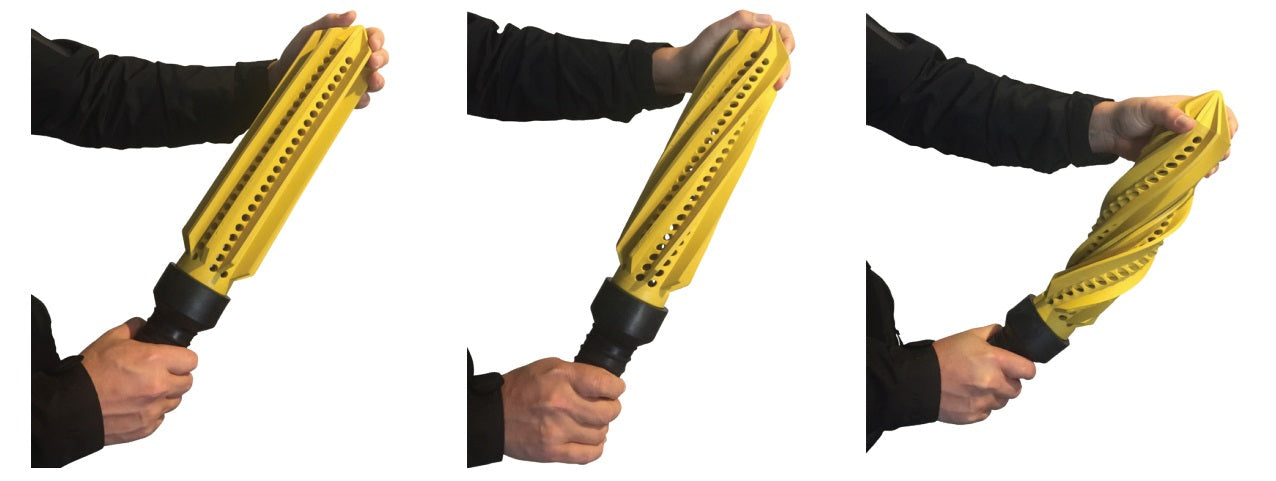

  • Lightweight and flexible design provides less impact when in contact with personnel or machinery.
  • Quick and easy to clean.
  • Protect the pump leading to less downtime, personnel intervention, and repair and maintenance.
Material:
  • Elastomeric polymers
Specifications:
  • Flow rate: 224 GPM
  • Minimum temperature: -87°F (-66°C)
  • Maximum temperatur e: 212°F (100°C)
Approval:
  • Manufactured in accordance to ISO:9001
Flexible Strainer with Hose Barb
Part Number Connection Size Hose Barb Hole Width Length
FLSS200 Hose Barb 2" 2" 8mm 3-1/2" 14.57"
FLSS200 Without Hose Barb 2" - 8mm 3-1/2" 14.57"
Flexible Strainer with Female BSP Threads
Part Number Connection Size Thread Hole Width Length
FLSS200-BSP3 Female BSP 2" 1-1/2" 3mm 63mm 370mm
FLSS200-BSP5 Female BSP 2" 1-1/2" 5mm 63mm 370mm
FLSS200-BSP8 Female BSP 2" 1-1/2" 8mm 63mm 370mm
Flexible Strainer with Female NPT Threads
Part Number Connection Size Thread Hole Width Length
FLSS200-NPT3 Female NPT 2" 1-1/2" 3mm 63mm 370mm
FLSS200-NPT5 Female NPT 2" 1-1/2" 5mm 63mm 370mm
FLSS200-NPT8 Female NPT 2" 1-1/2" 8mm 63mm 370mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
