10-T-7SR-25 by Flexaust | #8351100025 | T-7SR Series | Air, Fume, Dust, and Material Handling Duct Hose | 10 inch | 25ft
10-T-7SR-25 by Flexaust | #8351100025 | T-7SR Series | Air, Fume, Dust, and Material Handling Duct Hose | 10 inch | 25ft

10-T-7SR-25 by Flexaust | #8351100025 | T-7SR Series | Air, Fume, Dust, and Material Handling Duct Hose | 10 inch | 25ft

Sale price$568.64

Flexaust

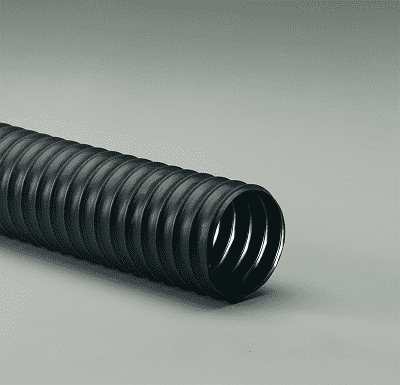

Flexadux T-7SR (T7SR) Air, Fume, Dust, and Material Handling Duct Hose

Black thermoplastic rubber coated super reinforced non-woven polyester fabric hose with a spring steel wire helix.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $534.52
15–29 $483.34
30+ $426.48
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Flexadux TR
Series:
  • T-7SR
Color(s):
  • Black

SPECIFICATIONS

Applications: Aluminum Refractory, Cotton Picking SAE Rating: N/A
Other Ratings: N/A Tube: Black thermoplastic rubber
Reinforcement: coated super reinforced non-woven polyester fabric hose with a spring steel wire helix Cover: N/A
Temperature Range: -50 deg. F to 285 deg. F Intermittent to 325 deg. Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Combines the ozone, UV, weathering, & chemical resistance of thermoplastic rubber with the tensile strength & fatigue resistance of fabric hoses.
  • Offers better tear strength, puncture, & abrasion resistance than traditional reinforced woven neoprene & thermoplastic hoses.
  • Handles higher positive pressures than non-reinforced thermoplastic rubber hoses.
Part Number
25 ft Reels		 Part Number
50 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)		 Weight - 50ft
(Lbs/Ft)
T-7SR 2in T-7SR 2in 2" .020" 2.75" 3:1 29 50 5.5 lbs 11 lbs
T-7SR 2.25in T-7SR 2.25in 2.25" N/A N/A N/A N/A N/A N/A N/A
T-7SR 2.5in T-7SR 2.5in 2.5" .020" 2.8" 3:1 29 30 6.5 lbs 13 lbs
T-7SR 3in T-7SR 3in 3" .020" 3" 3:1 29 29 8.25 lbs 16.5 lbs
T-7SR 3.5in T-7SR 3.5in 3.5" .020" 3.2" 4:1 29 27 10 lbs 20 lbs
T-7SR 4in T-7SR 4in 4" .020" 3.5" 4:1 29 25 12.5 lbs 25 lbs
T-7SR 4.5in T-7SR 4.5in 4.5" .020" 4" 4:1 29 23 13.75 lbs 27.5 lbs
T-7SR 5in T-7SR 5in 5" .020" 5" 4:1 29 22 15.75 lbs 31.5 lbs
T-7SR 5.5in T-7SR 5.5in 5.5" N/A N/A N/A N/A N/A N/A N/A
T-7SR 6in T-7SR 6in 6" .020" 6" 4:1 14 16 17.5 lbs 35 lbs
T-7SR 7in T-7SR 7in 7" .020" 7" 4:1 10 14 21.25 42.5
T-7SR 8in T-7SR 8in 8" .020" 7.5" 4:1 8 12 25 lbs 50 lbs
T-7SR 9in T-7SR 9in 9" N/A N/A N/A N/A N/A N/A N/A
T-7SR 10in T-7SR 10in 10" .020" 9" 4:1 7 9 31.25 lbs 62.5 lbs
T-7SR 12in T-7SR 12in 12" .020" 10" 4:1 4 8 43.75 lbs 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
