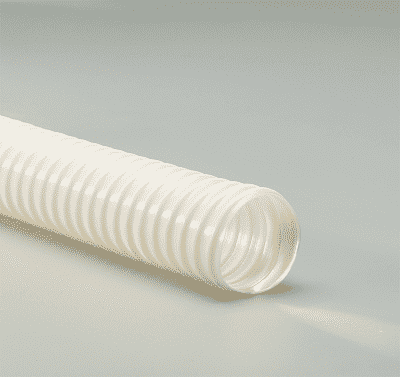

2-Saniflex-50 by Flexaust | #FTH200050 | Saniflex | Material Handling Duct Hose | 2 inch | 50ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Food Grade, Meat Packing, R.V. Manufacturing, Safety Equipment | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Natural PVC |
| Reinforcement: | Plastic helix | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| Saniflex .75in | .75" | N/A | .75" | 1.5:1 | 29 | 30 | 3.5 lbs |
| Saniflex 1in | 1" | N/A | 1" | 1.5:1 | 29 | 30 | 4.5 lbs |
| Saniflex 1.25in | 1.25" | N/A | 1.25" | 2:1 | 29 | 28 | 6.5 lbs |
| Saniflex 1.375in | 1.375" | N/A | 1.4" | 2:1 | 20 | 28 | 7 lbs |
| Saniflex 1.5in | 1.5" | N/A | 1.75" | 2:1 | 20 | 20 | 8 lbs |
| Saniflex 1.625in | 1.625" | N/A | 2" | 2:1 | 20 | 20 | 9 lbs |
| Saniflex 2in | 2" | N/A | 2" | 2:1 | 10 | 18 | 11.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
