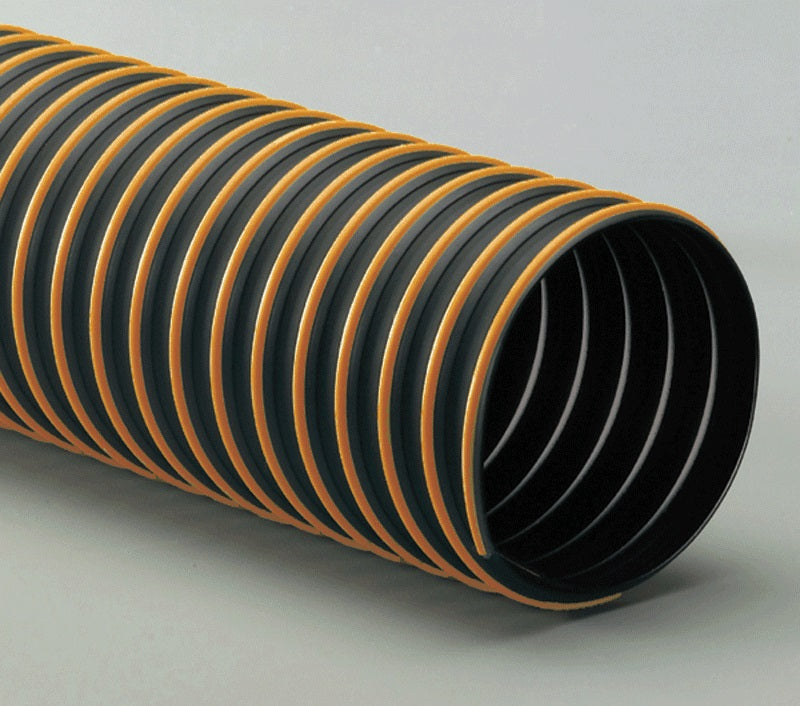

6-LCDC-25 by Flexaust | #8871060025 | LCDC Series | Air, Fume, Dust, and Material Handling Duct Hose | 6 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Lawn & Leaf Collection | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight high performance black polypropylene blend |
| Reinforcement: | Spring steel wire helix & orange external polypropylene wearstrip | Cover: | N/A |
| Temperature Range: | -30 deg. F to 200 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| LCDC 6in | 6" | .032" | 5.25" | 2:1 | 12 | 10 | 30 lbs |
| LCDC 8in | 8" | .032" | 7.5" | 2:1 | 11 | 8 | 37.5 lbs |
| LCDC 10in | 10" | .032" | 8" | 3:1 | 9 | 4 | 47.5 lbs |
| LCDC 12in | 12" | .032" | 10" | 3:1 | 7 | 2.5 | 55 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
