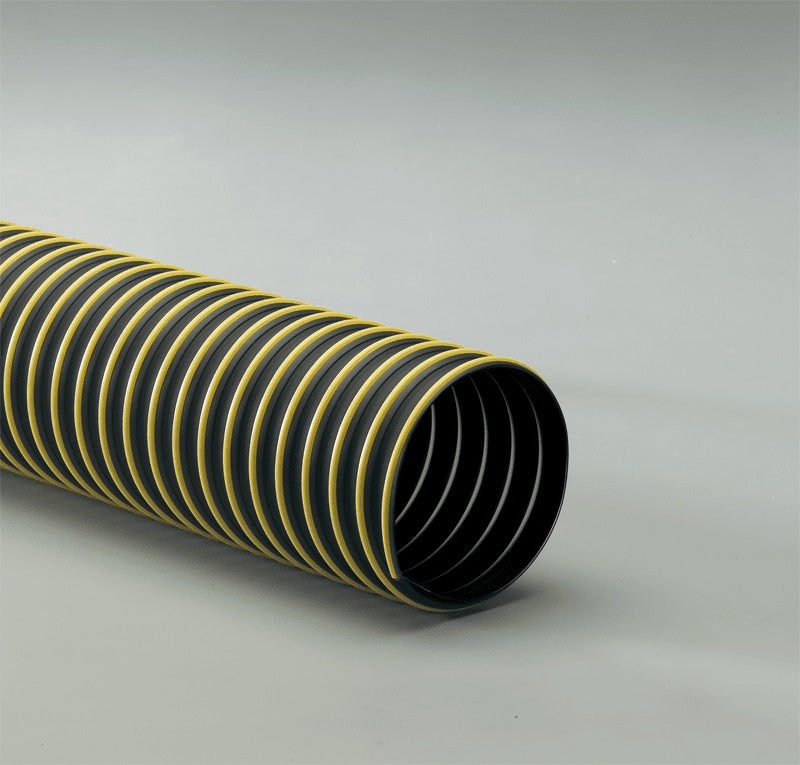

10-HT-W-25 by Flexaust | #8951100025 | HT-W Series | Material Handling Duct Hose | 10 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Application: | Lawn & Leaf Collection | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Heavy weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix & yellow external polypropylene wearstrip | Cover: | N/A |
| Temperature Range: | 60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| HT-W 8 in | 8" | .045" | 7" | 3:1 | 6 | 7 | 32.5 lbs |
| HT-W 10 in | 10" | .045" | 9" | 3:1 | 6 | 6 | 50 lbs |
| HT-W 12 in | 12" | .045" | 11" | 3:1 | 5 | 5.5 | 60 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
