3-HT-50 by Flexaust | #8511030050 | HT | Material Handling Duct Hose | 3 inch | 50ft

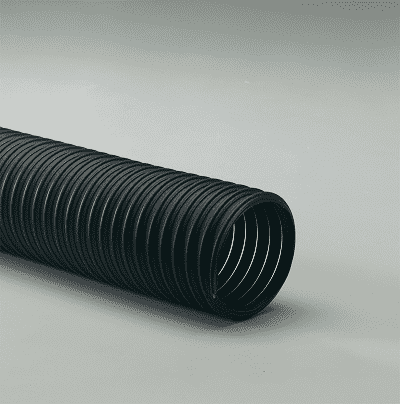

Flexaust Flexadux HT Material Handling Duct Hose Heavy weight black thermoplastic rubber hose reinforced with a spring steel wire helix.
Package Quantity: 50 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
16
Tubing Construction:
SPECIFICATIONS
| Applications: | Foundry Sand Transfer, Granule Transport, Hull Sanding Equipment, Ozone, Peat Moss Vacuum, Sand & Gravel Suction, Street & Parking Lot Sweepers, Wave Pool Blowers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Heavy weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| HT 1.5in | HT 1.5in | 1.5" | .035" | 2" | 2:1 | 29 | 30 | 6.75 lbs | 35 lbs |
| HT 2in | HT 2in | 2" | .035" | 3.29" | 2:1 | 29 | 24 | 8.5 lbs | 17 lbs |
| HT 2.5in | HT 2.5in | 2.5" | .035" | 3.77" | 2:1 | 29 | 19 | 9 lbs | 18 lbs |
| HT 3in | HT 3in | 3" | .035" | 4.25" | 2:1 | 29 | 16 | 12.5 lbs | 25 lbs |
| HT 4in | HT 4in | 4" | .045" | 4.75" | 2:1 | 29 | 12 | 18 lbs | 36 lbs |
| HT 5in | HT 5in | 5" | .045" | 5" | 2:1 | 16 | 10 | 22.25 lbs | 44.5 lbs |
| HT 6in | HT 6in | 6" | .045" | 5.25" | 3:1 | 8.3 | 9 | 26.25 lbs | 52.5 lbs |
| HT 8in | HT 8in | 8" | .054" | 6.9" | 3:1 | 3.4 | 7 | 35 lbs | 70 lbs |
| HT 10in | HT 10in | 10" | .054" | 8" | 3:1 | 3.4 | 6 | 53 lbs | 106 lbs |
| HT 12in | HT 12in | 12" | .054" | 10 | 3:1 | 2 | 5.5 | 62.5 lbs | 125 lbs |
| HT 14in | HT 14in | 14" | .054" | 12" | 3:1 | .72 | 5.2 | 67.5 lbs | 135 lbs |
| HT 16in | HT 16in | 16" | .054" | 14" | 3:1 | .5 | 4.6 | 75 lbs | 150 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
