1-GN-12 by Flexaust | #2900100012 | GN | Air and Fume Duct Hose | 1 inch | 12ft
1-GN-12 by Flexaust | #2900100012 | GN | Air and Fume Duct Hose | 1 inch | 12ft

1-GN-12 by Flexaust | #2900100012 | GN | Air and Fume Duct Hose | 1 inch | 12ft

Sale price$93.70

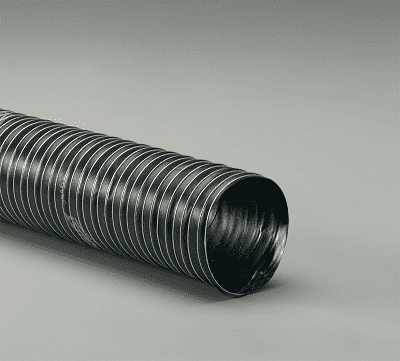

Flexaust Heat-Flex GN Air and Fume Duct Hose Double-ply black neoprene coated fiberglass fabric hose reinforced with a spring steel wire helix & external filament fiberglass cord

Package Quantity: 12 FT

Buy More, Save More!
Quantity Price Each
5–19 $88.08
20–59 $79.65
60+ $70.28
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Heat-Flex
Series:
  • GN
Color(s):
  • Black

SPECIFICATIONS

Applications: A/C Ventilation, Aerospace, Brake Ducting, Cold Air Supply, Defroster/Heater, Diesel/Engine Exhaust, Limo A/C Duct, Plastic Bag Machines, Safety Equipment, Smoke Ejectors, Transmission Cooling SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated fiberglass fabric
Reinforcement: Spring steel wire helix & external filament fiberglass cord Cover: N/A
Temperature Range: -40 deg. F to 300 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Offers higher temperature characteristics than traditional neoprene hoses.
  • The narrow pitch allows for tight bending radius while maintaining a smooth air flow.
  • Non-kinking.
  • Not recommended for continuous flexing.
Part Number 12 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft)
GN 1in 1" N/A 1" 3:1 29 30 1.632 lbs
GN 1.5in 1.5" N/A 1.2" 3.7:1 29 30 2.052 lbs
GN 2in 2" N/A 1.7" 4:1 29 30 3.024 lbs
GN 2.5in 2.5" N/A 2" 4:1 29 30 3.624 lbs
GN 3in 3" N/A 2.4" 4:1 29 30 4.236 lbs
GN 3.5in 3.5" N/A 2.8" 4:1 15 30 4.86 lbs
GN 4in 4" N/A 3" 4.8:1 21 30 5.832 lbs
GN 5in 5" N/A 3.6" 4.8:1 11 29 7.188 lbs
GN 6in 6" N/A 4" 6:1 5 19 7.416 lbs
GN 7in 7" N/A N/A N/A N/A N/A N/A
GN 8in 8" N/A 4.5" 6:1 4.3 11 11.4 lbs
GN 10in 10" N/A N/A N/A N/A N/A N/A
GN 12in 12" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
