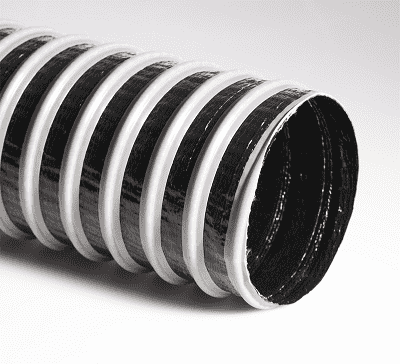

20-FSP-Bridge-25 by Flexaust | #2502000025 | FSP Bridge | Dust and Material Handling Duct Hose | 20 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Agricultural, Bridge Cleaning Filtering, Concrete Transport, Paper Mills, Street & Parking Lot Sweepers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply black PVC vinyl coated polyester fabric |
| Reinforcement: | Spring steel wire helix & gray external PVC wearstrip | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| FSP Bridge 12in | 12" | N/A" | 11" | 4:1 | 8 | 2 | 55 lbs |
| FSP Bridge 14in | 14" | N/A | 12" | 4:1 | 3 | 4 | 67.5 lbs |
| FSP Bridge 16in | 16" | N/A | 14" | 4:1 | 5 | 2 | 75 lbs |
| FSP Bridge 18in | 18" | N/A | 16" | 4:1 | 2 | 3 | 92.5 lbs |
| FSP Bridge 20in | 20" | N/A | 17" | 4:1 | 1 | 2 | 95 lbs |
| FSP Bridge 22in | 22" | N/A | 19" | 4:1 | 1 | 2 | 105 lbs |
| FSP Bridge 24in | 24" | N/A | 21" | 4:1 | .6 | 1.8 | 112.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
