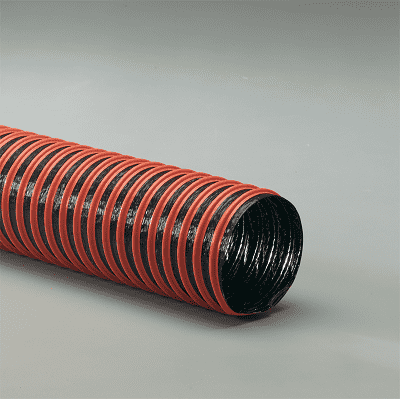

4-FSP-2-25 by Flexaust | #2480400025 | FSP-2 Series | Dust Duct Hose | 4 inch | 25ft
Flexaust FSP-2 (FSP2) Dust Duct Hose Double-ply black PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & orange external PVC wearstrip.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $265.76 |
| 15–29 | $240.31 |
| 30+ | $212.04 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
10
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Air Duct Cleaning, Flame Retardant, Foundry Sand Transfer, Grinders, Lav Waste Disposal, Ozone, Sheet Metal, Shipyards, Straw Blowing | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply black PVC vinyl coated polyester fabric |
| Reinforcement: | Spring steel wire helix & orange external PVC wearstrip | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| FSP-2 3in | 3" | N/A | 2.8" | 3:1 | 29 | 13 | 12.5 lbs |
| FSP-2 4in | 4" | N/A | 3.7" | 3:1 | 24 | 10 | 18 lbs |
| FSP-2 5in | 5" | N/A | 4.7" | 3:1 | 13 | 8 | 22.25 lbs |
| FSP-2 6in | 6" | N/A | 5.3" | 3.5:1 | 7.3 | 7 | 26.5 lbs |
| FSP-2 7in | 7" | N/A | 6.5" | 3.5:1 | 5 | 6 | 31 lbs |
| FSP-2 8in | 8" | N/A | 6.9" | 3.5:1 | 7 | 4 | 37 lbs |
| FSP-2 10in | 10" | N/A | 8.6" | 3.5:1 | 3.7 | 3 | 46 lbs |
| FSP-2 12in | 12" | N/A | 10" | 3.5:1 | 2.2 | 2.6 | 55 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
