12-FSP-1-25 by Flexaust | #2461200025 | FSP-1 Series | Air and Fume Duct Hose | 12 inch | 25ft

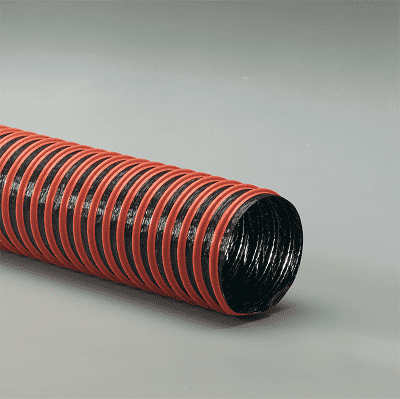

Flexaust FSP-1 (FSP1) Air and Fume Duct Hose Single-ply black PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & orange external PVC wearstrip.
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $534.43 |
| 15–29 | $483.26 |
| 30+ | $426.41 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
2
Tubing Construction:
Special Properties:
SPECIFICATIONS
| Applications: | Cab Ventilation, Chemical and Welding Fume Extraction, Flame Retardant, HEPA, Landfill Venting, Oil Mist Extraction, Ozone, Paint Spray Extraction, Ultra Violet Dryers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply black PVC vinyl coated polyester fabric |
| Reinforcement: | Spring steel wire helix & orange external PVC wearstrip | Cover: | N/A |
| Temperature Range: | -20 deg. F to 180 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| FSP-1 3in | 3" | N/A | 3.5" | 2.5:1 | 29 | 26 | 12.5 lbs |
| FSP-1 4in | 4" | N/A | 4" | 2.5:1 | 24 | 13 | 16.25 lbs |
| FSP-1 5in | 5" | N/A | 4.5" | 2.5:1 | 17 | 11 | 18.75 lbs |
| FSP-1 6in | 6" | N/A | 5" | 4:1 | 16 | 6 | 21.25 lbs |
| FSP-1 7in | 7" | N/A | 6" | 4:1 | 12 | 5 | 27.5 lbs |
| FSP-1 8in | 8" | N/A | 7" | 4:1 | 9 | 4 | 31.25 lbs |
| FSP-1 10in | 10" | N/A | 8.6" | 4:1 | 4 | 3 | 39.25 lbs |
| FSP-1 12in | 12" | N/A | 10.3" | 4:1 | 3 | 2.5 | 47 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
