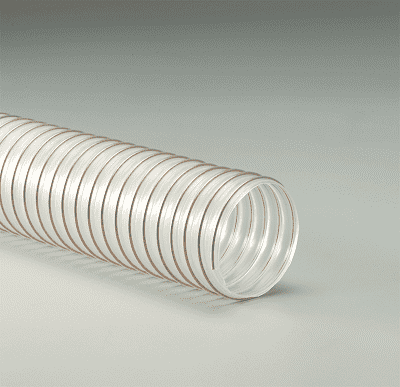

10-Flx-Thane-SE-50 by Flexaust | #8631100050 | Flx-Thane SE | Air, Dust, and Material Handling Duct Hose | 10 inch | 50ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Shipyards, Welding Fume Extraction | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Self-extinguishing medium weight clear polyurethane |
| Reinforcement: | Bronze coated spring steel wire helix | Cover: | N/A |
| Temperature Range: | -65 deg. F to 225 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Flx-Thane SE 2in | Flx-Thane SE 2in | 2" | .030" | 2" | 3:1 | 29 | 30 | 6.25 lbs | 12.5 lbs |
| Flx-Thane SE 2.5in | Flx-Thane SE 2.5in | 2.5" | .030" | 2.5" | 3:1 | 29 | 30 | 8 lbs | 16 lbs |
| Flx-Thane SE 3in | Flx-Thane SE 3in | 3" | .030" | 3" | 3:1 | 29 | 29 | 10 lbs | 20 lbs |
| Flx-Thane SE 4in | Flx-Thane SE 4in | 4" | .030" | 4" | 3:1 | 29 | 25 | 17.5 lbs | 35 lbs |
| Flx-Thane SE 5in | Flx-Thane SE 5in | 5" | .030" | 5" | 3:1 | 17 | 22 | 22.5 lbs | 45 lbs |
| Flx-Thane SE 6in | Flx-Thane SE 6in | 6" | .030" | 6" | 3:1 | 15 | 19 | 25 lbs | 50 lbs |
| Flx-Thane SE 8in | Flx-Thane SE 8in | 8" | .030" | 8" | 3:1 | 9 | 14 | 37.5 lbs | 75 lbs |
| Flx-Thane SE 10in | Flx-Thane SE 10in | 10" | .030" | 8" | 3:1 | 4 | 11 | 40 lbs | 80 lbs |
| Flx-Thane SE 12in | Flx-Thane SE 12in | 12" | .030" | 10" | 3:1 | 2.2 | 10 | 50 lbs | 100 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
