4.5-Flx-Thane-MD-25 by Flexaust | Flx-Thane MD | Material Handling Duct Hose | 4.5 inch | 25ft

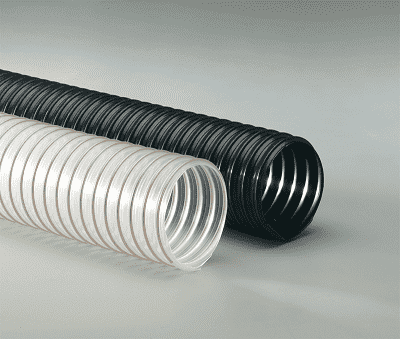

Flexaust Flexadux Flx-Thane® MD Medium weight black or clear polyurethane hose reinforced with a bronze coated spring steel wire helix.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $315.45 |
| 15–29 | $285.24 |
| 30+ | $251.69 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Tubing Construction:
SPECIFICATIONS
| Applications: | Agricultural, Concrete Transport, Dust Collection, Fertilizer Broadcasting, Food Grade, Foundry Sand Transfer, Jet Fuel Vapor Venting, Landfill Venting, Waste Disposal, Street & Parking Lot Sweepers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight black or clear polyurethane |
| Reinforcement: | Bronze coated spring steel wire helix | Cover: | N/A |
| Temperature Range: | -65 deg. F to 225 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) | Weight - 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Flx-Thane MD 2in | Flx-Thane MD 2in | 2" | .030" | 2" | 3:1 | 29 | 30 | 6.25 lbs | 12.5 lbs |
| Flx-Thane MD 2.5in | Flx-Thane MD 2.5in | 2.5" | .030" | 2.5" | 3:1 | 29 | 30 | 8 lbs | 16 lbs |
| Flx-Thane MD 3in | Flx-Thane MD 3in | 3" | .030" | 3" | 3:1 | 29 | 29 | 10 lbs | 20 lbs |
| Flx-Thane MD 3.5in | Flx-Thane MD 3.5in | 3.5" | .030" | 3.5" | 3:1 | 22 | 28 | 13 lbs | 26 lbs |
| Flx-Thane MD 4in | Flx-Thane MD 4in | 4" | .030" | 4" | 3:1 | 29 | 25 | 17.5 lbs | 35 lbs |
| Flx-Thane MD 4.5in | Flx-Thane MD 4.5in | 4.5" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Flx-Thane MD 5in | Flx-Thane MD 5in | 5" | .030" | 5" | 3:1 | 17 | 22 | 22.5 lbs | 45 lbs |
| Flx-Thane MD 5.5in | Flx-Thane MD 5.5in | 5.5" | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Flx-Thane MD 6in | Flx-Thane MD 6in | 6" | .030" | 6" | 3:1 | 15 | 19 | 25 lbs | 50 lbs |
| Flx-Thane MD 7in | Flx-Thane MD 7in | 7" | .030" | 7 | 3:1 | 12 | 16 | 30 lbs | 60 lbs |
| Flx-Thane MD 8in | Flx-Thane MD 8in | 8" | .030" | 8" | 3:1 | 9 | 14 | 37.5 lbs | 75 lbs |
| Flx-Thane MD 9in | Flx-Thane MD 9in | 9" | .030" | 9" | 3:1 | 5 | 12 | 38.75 lbs | 77.5 lbs |
| Flx-Thane MD 10in | Flx-Thane MD 10in | 10" | .030" | 8" | 3:1 | 4 | 11 | 40 lbs | 80 lbs |
| Flx-Thane MD 12in | Flx-Thane MD 12in | 12" | .030" | 10" | 3:1 | 2.2 | 10 | 50 lbs | 100 lbs |
| Flx-Thane MD 14in | Flx-Thane MD 14in | 14" | .030" | 12" | 3:1 | 3.3 | 8 | 62.5 lbs | 125 lbs |
| Flx-Thane MD 16in | Flx-Thane MD 16in | 16" | .030" | 14" | 3:1 | 2.2 | 7 | 75 lbs | 150 lbs |
| Flx-Thane MD 18in | Flx-Thane MD 18in | 18" | .030" | 16" | 3:1 | 1.4 | 6 | 82.5 lbs | 165 lbs |
| Flx-Thane MD 20in | Flx-Thane MD 20in | 20" | .030" | 18" | 3:1 | 1 | 5.5 | 92.5 lbs | 185 lbs |
| Flx-Thane MD 22in | Flx-Thane MD 22in | 22" | .030" | 20" | 3:1 | .9 | 5 | 102.5 lbs | 205 lbs |
| Flx-Thane MD 24in | Flx-Thane MD 24in | 24" | .030" | 22" | 3:1 | .75 | 4 | 112.5 lbs | 225 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
