2.5-Flx-Thane-HD-25 by Flexaust | Flx-Thane HD | Material Handling Duct Hose | 2.5 inch | 25ft
2.5-Flx-Thane-HD-25 by Flexaust | Flx-Thane HD | Material Handling Duct Hose | 2.5 inch | 25ft

2.5-Flx-Thane-HD-25 by Flexaust | Flx-Thane HD | Material Handling Duct Hose | 2.5 inch | 25ft

Sale price$316.26

Flexaust
Flexadux Flx-Thane® HD

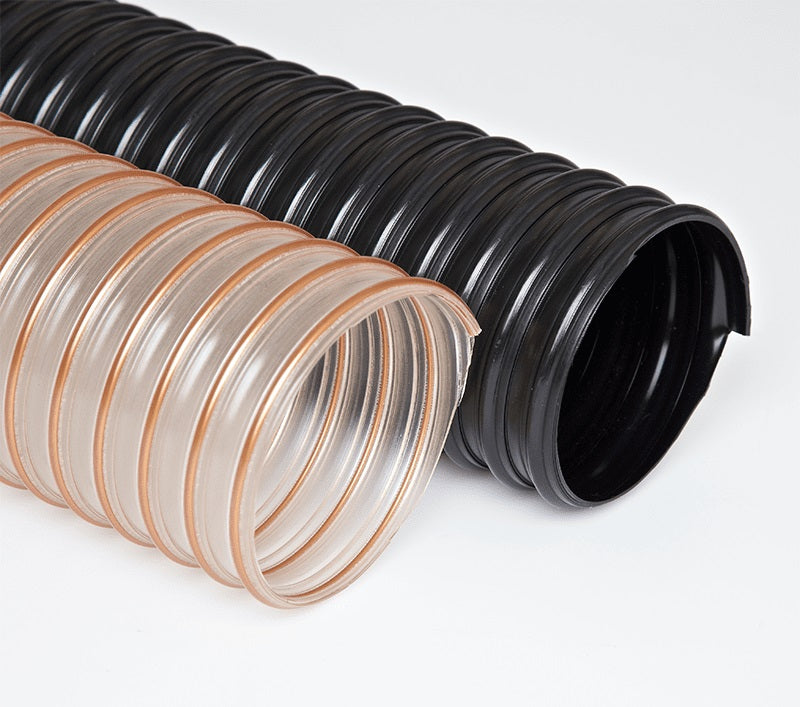

Heavy weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix.

Color: Black
Buy More, Save More!
Quantity Price Each
5–14 $277.54
15–29 $250.96
30+ $221.44
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Flexadux PU
Series:
  • Flx-Thane HD
Color(s):
  • Black
  • Clear/Semi-Clear

SPECIFICATIONS

Applications: Agricultural, Concrete Transport, Lawn & Leaf Collection, Fertilizer Broadcasting, Food Grade, Foundry Sand Transfer, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Heavy weight clear or black polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Ideal for severe service applications.
  • Very good low temperature flexibility.
  • Clear is manufactured with FDA acceptable materials.
Part Number
25 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)
Flx-Thane HD 2in 2" .035" 2" 2:1 29 32 8.75 lbs
Flx-Thane HD 2.5in 2.5" N/A N/A N/A N/A N/A N/A
Flx-Thane HD 3in 3" .035" 3" 2:1 29 32 13.75 lbs
Flx-Thane HD 3.5in 3.5" N/A N/A N/A N/A N/A N/A
Flx-Thane HD 4in 4" .045" 3.5" 2:1 29 30 12.5 lbs
Flx-Thane HD 5in 5" .040" 4" 2:1 17 30 27.5 lbs
Flx-Thane HD 6in 6" .045" 5" 2:1 15 24 30 lbs
Flx-Thane HD 7in 7" .045" 7" 2:1 12 22 35 lbs
Flx-Thane HD 8in 8" .045" 8" 2:1 9 20 42.5 lbs
Flx-Thane HD 10in 10" .045" 9" 2:1 4 17 47.5 lbs
Flx-Thane HD 12in 12" .045" 11" 2:1 2.5 14 60 lbs
Flx-Thane HD 14in 14" .045" 13" 2:1 3.5 12 80 lbs
Flx-Thane HD 16in 16" .045" 15" 2:1 2.5 11 92.5 lbs
Flx-Thane HD 18in 18" .045" 17" 2:1 1.5 10 102.5 lbs
Flx-Thane HD 20in 20" .045" 19" 2:1 1 9 115 lbs
Flx-Thane HD 24in 24" .045" 23 2:1 .2 3 140 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
