5-Flex-Tube-PV-25 by Flexaust | #3504050025 | Flex-Tube PV | Air, Fume, and Dust Duct Hose | 5 inch | 25ft
5-Flex-Tube-PV-25 by Flexaust | #3504050025 | Flex-Tube PV | Air, Fume, and Dust Duct Hose | 5 inch | 25ft
Flexaust

5-Flex-Tube-PV-25 by Flexaust | #3504050025 | Flex-Tube PV | Air, Fume, and Dust Duct Hose | 5 inch | 25ft

Sale price$369.58

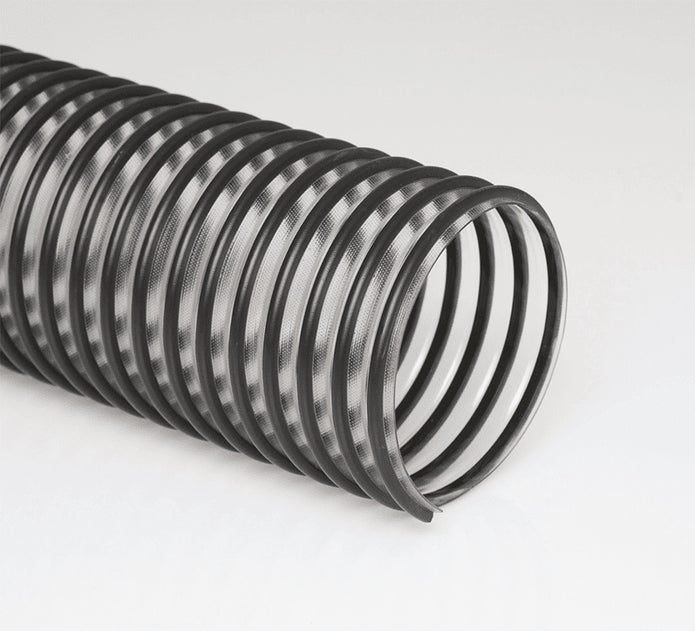

Flexaust Flex-Tube® PV Medium weight clear co-extruded PVC hose with a rigid black external PVC helix.

Package Quantity: 25 FT

Product Data:

Brand:
  • Flex-Tube
Series:
  • Flex-Tube PV
Color(s):
  • Black & Clear/Semi-Clear

SPECIFICATIONS

Applications: Industrial Vacuum Cleaners, Lawn & Leaf Collection, Pharmaceutical, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight clear co-extruded PVC
Reinforcement: Rigid black external PVC helix Cover: N/A
Temperature Range: 20 deg. F to 160 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ultra smooth interior wall assures efficient airflow.
  • Very flexible & crush resistant.
  • Spiral co-extruded engineered construction.
  • Helix acts as a wearstrip.
Part Number 12 ft Reels Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft) Weight - 25ft (Lbs/Ft)
Flx-Tube PV 2in Flx-Tube PV 2in 2" .030" 2.2" 2:1 27 28 3.84 lbs 8 lbs
Flx-Tube PV 2.5in Flx-Tube PV 2.5in 2.5" .030" 3.1" 2:1 26 25 4.8 lbs 10 lbs
Flx-Tube PV 3in Flx-Tube PV 3in 3" .030" 3.7" 2:1 22 18 6 lbs 12.5 lbs
Flx-Tube PV 4in Flx-Tube PV 4in 4" .032" 4" 2:1 14 16 8.64 lbs 18 lbs
Flx-Tube PV 5in Flx-Tube PV 5in 5" .035" 5.25" 2:1 12 17 11.04 lbs 23 lbs
Flx-Tube PV 6in Flx-Tube PV 6in 6" .035" 6.25" 2:1 10 12 13.32 lbs 27.75 lbs
Flx-Tube PV 7in Flx-Tube PV 7in 7" .035" 7" 2:1 10 11 15.84 lbs 33 lbs
Flx-Tube PV 8in Flx-Tube PV 8in 8" .035" 8" 2:1 6 10 18 lbs 37.5 lbs
Flx-Tube PV 9in Flx-Tube PV 9in 9" .040" 9.25" 2:1 5 9 19.8 lbs 41.25 lbs
Flx-Tube PV 10in Flx-Tube PV 10in 10" .040" 9.5" 2:1 4 7 22.2 lbs 46.25 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
