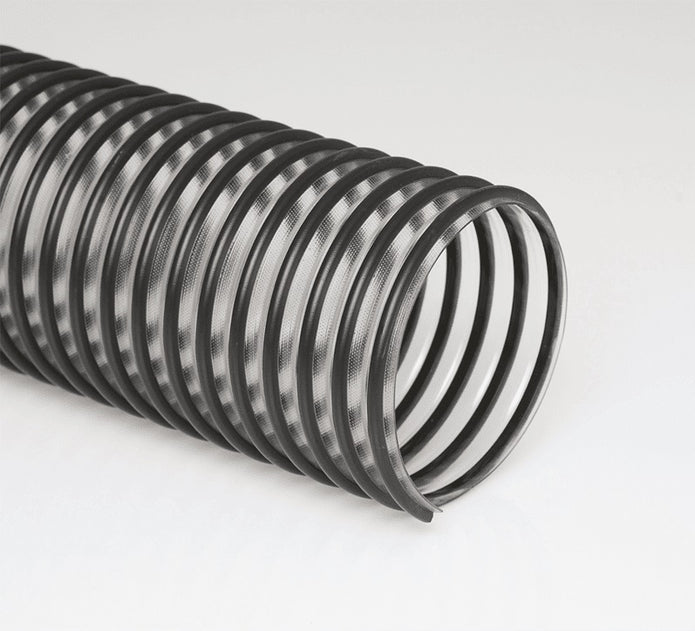

2-Flex-Tube-PV-25 by Flexaust | #3504020025 | Flex-Tube PV | Air, Fume, and Dust Duct Hose | 2 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Industrial Vacuum Cleaners, Lawn & Leaf Collection, Pharmaceutical, Woodworking/Furniture Industry |
SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight clear co-extruded PVC |
| Reinforcement: | Rigid black external PVC helix | Cover: | N/A |
| Temperature Range: | 20 deg. F to 160 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 12 ft Reels |
Part Number 25 ft Reels |
Inside Diameter |
Wall Thickness (In) |
Centerline Bend Radius (In) |
Compression Ratio |
Negative Pressure (In/Hg) |
Working Pressure (PSI) |
Weight - 12ft (Lbs/Ft) |
Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Flx-Tube PV 2in | Flx-Tube PV 2in | 2" | .030" | 2.2" | 2:1 | 27 | 28 | 3.84 lbs | 8 lbs |
| Flx-Tube PV 2.5in | Flx-Tube PV 2.5in | 2.5" | .030" | 3.1" | 2:1 | 26 | 25 | 4.8 lbs | 10 lbs |
| Flx-Tube PV 3in | Flx-Tube PV 3in | 3" | .030" | 3.7" | 2:1 | 22 | 18 | 6 lbs | 12.5 lbs |
| Flx-Tube PV 4in | Flx-Tube PV 4in | 4" | .032" | 4" | 2:1 | 14 | 16 | 8.64 lbs | 18 lbs |
| Flx-Tube PV 5in | Flx-Tube PV 5in | 5" | .035" | 5.25" | 2:1 | 12 | 17 | 11.04 lbs | 23 lbs |
| Flx-Tube PV 6in | Flx-Tube PV 6in | 6" | .035" | 6.25" | 2:1 | 10 | 12 | 13.32 lbs | 27.75 lbs |
| Flx-Tube PV 7in | Flx-Tube PV 7in | 7" | .035" | 7" | 2:1 | 10 | 11 | 15.84 lbs | 33 lbs |
| Flx-Tube PV 8in | Flx-Tube PV 8in | 8" | .035" | 8" | 2:1 | 6 | 10 | 18 lbs | 37.5 lbs |
| Flx-Tube PV 9in | Flx-Tube PV 9in | 9" | .040" | 9.25" | 2:1 | 5 | 9 | 19.8 lbs | 41.25 lbs |
| Flx-Tube PV 10in | Flx-Tube PV 10in | 10" | .040" | 9.5" | 2:1 | 4 | 7 | 22.2 lbs | 46.25 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
