4-Flex-Tube-FlexStat-60-25 by Flexaust | #3530040025 | Flex-Tube FlexStat 60 | Dust and Material Handling Duct Hose | 4 inch | 25ft
Flexaust

4-Flex-Tube-FlexStat-60-25 by Flexaust | #3530040025 | Flex-Tube FlexStat 60 | Dust and Material Handling Duct Hose | 4 inch | 25ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Applications: Grain Vac, Powder & Bulk, Static Control SAE Rating: N/A
Other Ratings: N/A Tube: Clear static dissipative thermoplastic polyurethane

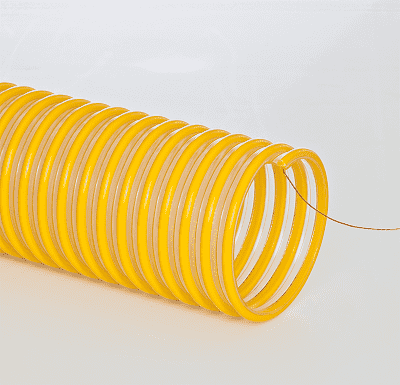

Reinforcement: Rigid yellow external ABS helix & an embedded copper grounding wire Cover: N/A
Temperature Range: -40 deg. F to 200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Extreme abrasion resistance.
  • Handles high vacuum.
  • Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up.
  • Enclosed copper grounding wire reduces static build-up in material handling applications.
  • Permanent and non-humidity dependent ESD (electrostatic discharge) protection.
  • Ideal for severe service applications, hopper loading systems and railcar loading/unloading.
  • Surface Resistivity Level: 108-1010 Ohms/Square.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft Weight - 50ft
FlexStat 60 4in FlexStat 60 4in 4" .055 11.75" N/A 28 40 22.5 lbs 45 lbs
FlexStat 60 5in FlexStat 60 5in 5" .060 15.5" N/A 28 36 31.75 lbs 63.5 lbs
FlexStat 60 6in FlexStat 60 6in 6" .060 16.75" N/A 28 30 42.5 lbs 85 lbs
FlexStat 60 8in FlexStat 60 8in 8" .060 20.5" N/A 26 28 61 lbs 122 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
