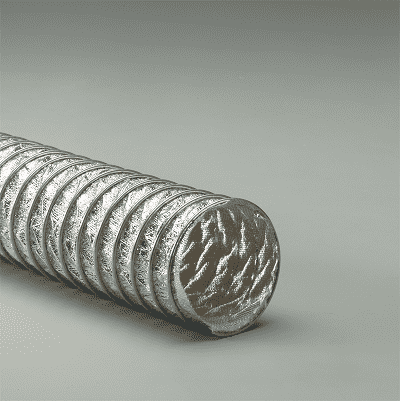

7-Flex-Lok-1050-25 by Flexaust | #1860700025 | Flex-Lok 1050 Fume Duct Hose | 7 inch | 25ft
7-Flex-Lok-1050-25 by Flexaust | #1860700025 | Flex-Lok 1050 Fume Duct Hose | 7 inch | 25ft
Flexaust

7-Flex-Lok-1050-25 by Flexaust | #1860700025 | Flex-Lok 1050 Fume Duct Hose | 7 inch | 25ft

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

SPECIFICATIONS

Applications: Aircraft, Brick Kilns, Diesel/Engine Exhaust, Exhaust Systems, Foundries, High Temperature, Jet Fuel Vapor Venting, Paper Mills, Rocket Support, Tractor Pull Exhaust, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply construction silver aluminum coated fiberglass fabric hose with a silver heat-resistant fiberglass liner
Reinforcement: Coated steel wire Cover: N/A
Temperature Range: -65 deg. F to 1050 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extreme temperature resistance with excellent heat stability.
  • Extremely flexible & compressible with good flex characteristics.
  • Excellent flow characteristics.
  • Fiberglass liner increases tensile strength for a longer life cycle.
  • Excellent for reel & drop systems.
  • Ideal for engine & dynamometer testing & paper mill drying applications.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 1050 3in 3" N/A 2.5" 5:1 8 12 18.75 lbs
Flex-Lok 1050 4in 4" N/A 3" 5:1 6.1 10 21.25 lbs
Flex-Lok 1050 5in 5" N/A 3.5" 6:1 5.3 9 23.75 lbs
Flex-Lok 1050 6in 6" N/A 4.5" 6:1 4 7.9 25 lbs
Flex-Lok 1050 7in 7" N/A 5" 6:1 3.4 7.3 30 lbs
Flex-Lok 1050 8in 8" N/A 5.5" 6:1 3.1 6.9 32.5 lbs
Flex-Lok 1050 9in 9" N/A 6.3" 6:1 2.6 6.4 37.5 lbs
Flex-Lok 1050 10in 10" N/A 7" 6:1 2.2 6 40 lbs
Flex-Lok 1050 12in 12" N/A 8.5" 6:1 1.5 4.5 45 lbs
Flex-Lok 1050 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok 1050 16in 16" N/A N/A N/A N/A N/A N/A
Flex-Lok 1050 18in 18" N/A 15" 6:1 .65 2.1 87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
