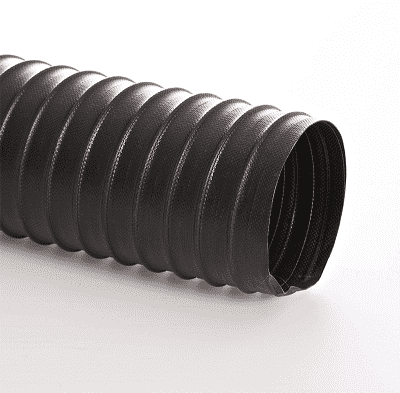

22-CWY-25 by Flexaust | #2002200025 | CWY Series | Material Handling Duct Hose | 22 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Foundry Sand Transfer, Glass Clinching, Material Handling, Powder & Bulk, Shredders, Street & Parking Lot Sweepers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply black neoprene coated nylon fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -40 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| CWY 4in | 4" | N/A | 4" | 3.2:1 | 29 | 30 | 16.25 lbs |
| CWY 4.5in | 4.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWY 5in | 5" | N/A | 4.1" | 3.2:1 | 25 | 30 | 20 lbs |
| CWY 5.5in | 5.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWY 6in | 6" | N/A | 4.7" | 3.5:1 | 24 | 30 | 27.5 lbs |
| CWY 7in | 7" | N/A | 5.1" | 3.5:1 | 16 | 26 | 30 lbs |
| CWY 8in | 8" | N/A | 5.7" | 3.5:1 | 14 | 23 | 32.5 lbs |
| CWY 9in | 9" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWY 10in | 10" | N/A | 7.2" | 4:1 | 7 | 19 | 40 lbs |
| CWY 12in | 12" | N/A | 8.6" | 4:1 | 4 | 15 | 47.5 lbs |
| CWY 14in | 14" | N/A | 9.8" | 4:1 | 3 | 11 | 65 lbs |
| CWY 16in | 16" | N/A | 11.2" | 4:1 | 2 | 9 | 75 lbs |
| CWY 18in | 18" | N/A | 11.6" | 4:1 | 1.5 | 7 | 77.5 lbs |
| CWY 20in | 20" | N/A | 13" | 4:1 | 1.1 | 5 | 87.5 lbs |
| CWY 22in | 22" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWY 24in | 24" | N/A | 15.4" | 4:1 | .6 | 3 | 102.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
