14-CWY-25 by Flexaust | #2001400025 | CWY Series | Material Handling Duct Hose | 14 inch | 25ft
14-CWY-25 by Flexaust | #2001400025 | CWY Series | Material Handling Duct Hose | 14 inch | 25ft

14-CWY-25 by Flexaust | #2001400025 | CWY Series | Material Handling Duct Hose | 14 inch | 25ft

Sale price$1,530.30

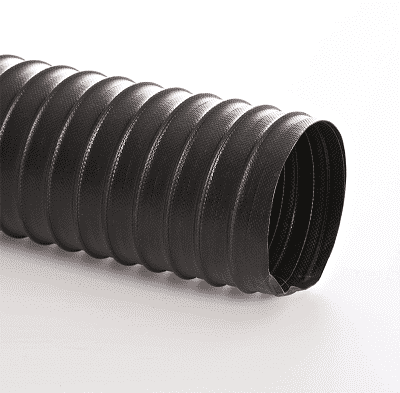

Flexaust CWY Material Handling Duct Hose Double-ply black neoprene coated nylon fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,438.48
8–14 $1,377.27
15+ $1,224.24
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Flexaust
Series:
  • CWY
Color(s):
  • Black

SPECIFICATIONS

Applications: Foundry Sand Transfer, Glass Clinching, Material Handling, Powder & Bulk, Shredders, Street & Parking Lot Sweepers SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated nylon fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Neoprene & nylon construction offers excellent abrasion resistance & superior flex life.
  • Handles both positive & negative pressure.
  • Excellent tensile strength.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CWY 4in 4" N/A 4" 3.2:1 29 30 16.25 lbs
CWY 4.5in 4.5" N/A N/A N/A N/A N/A N/A
CWY 5in 5" N/A 4.1" 3.2:1 25 30 20 lbs
CWY 5.5in 5.5" N/A N/A N/A N/A N/A N/A
CWY 6in 6" N/A 4.7" 3.5:1 24 30 27.5 lbs
CWY 7in 7" N/A 5.1" 3.5:1 16 26 30 lbs
CWY 8in 8" N/A 5.7" 3.5:1 14 23 32.5 lbs
CWY 9in 9" N/A N/A N/A N/A N/A N/A
CWY 10in 10" N/A 7.2" 4:1 7 19 40 lbs
CWY 12in 12" N/A 8.6" 4:1 4 15 47.5 lbs
CWY 14in 14" N/A 9.8" 4:1 3 11 65 lbs
CWY 16in 16" N/A 11.2" 4:1 2 9 75 lbs
CWY 18in 18" N/A 11.6" 4:1 1.5 7 77.5 lbs
CWY 20in 20" N/A 13" 4:1 1.1 5 87.5 lbs
CWY 22in 22" N/A N/A N/A N/A N/A N/A
CWY 24in 24" N/A 15.4" 4:1 .6 3 102.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
