10-CWGS-25 by Flexaust | #2701000025 | CWGS | Air and Fume Duct Hose | 10 inch | 25ft

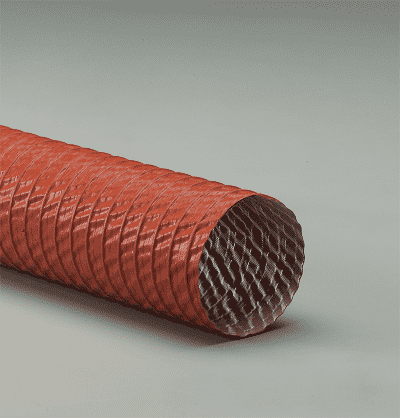

Flexaust Heat-Flex CWGS Air and Fume Duct Hose Single-ply iron oxide red silicone coated fiberglass fabric hose reinforced with a spring steel wire helix
Package Quantity: 25 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 4–7 | $1,436.96 |
| 8–14 | $1,375.81 |
| 15+ | $1,222.94 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
4
Tubing Construction:
SPECIFICATIONS
| Applications: | Aircraft | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply iron oxide red silicone coated fiberglass fabric |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -65 deg. F to 550 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| CWGS 2in | 2" | N/A | 1.4" | 5:1 | 29 | 30 | 5.25 lbs |
| CWGS 2.5in | 2.5" | N/A | 1.8" | 5:1 | 24 | 30 | 7.25 lbs |
| CWGS 3in | 3" | N/A | 2.1" | 5:1 | 14 | 30 | 7.75 lbs |
| CWGS 3.5in | 3.5" | N/A | 2.5" | 5:1 | 9 | 30 | 9.75 lbs |
| CWGS 4in | 4" | N/A | 2.7" | 6.6:1 | 12 | 18 | 10 lbs |
| CWGS 4.5in | 4.5" | N/A | 3" | 6.6:1 | 8.5 | 16 | 12.25 lbs |
| CWGS 5in | 5" | N/A | 3.3" | 6.6:1 | 6 | 14 | 12.5 lbs |
| CWGS 6in | 6" | N/A | 3.7" | 6.6:1 | 5 | 7 | 13.5 lbs |
| CWGS 8in | 8" | N/A | 4.9" | 6.6:1 | 2 | 5 | 18.25 lbs |
| CWGS 10in | 10" | N/A | 6.1" | 6.6:1 | 1 | 4 | 22.75 lbs |
| CWGS 12in | 12" | N/A | 7.3" | 6.6:1 | .7 | .3 | 27 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
