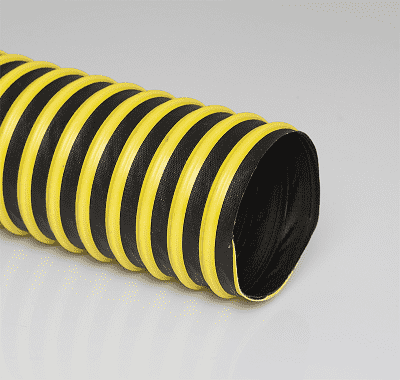

12-CWC-W-25 by Flexaust | #1111200025 | CWC-W Series | Dust and Material Handling Hose | 12 inch | 25ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Air Duct Cleaning, Bridge Cleaning Filtering, Flame Retardant, Furnace Duct Cleaning, Sand Blasting, Tractor Pull Exhaust | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply black neoprene coated polyester fabric |
| Reinforcement: | spring steel wire helix & yello external PVC coated polyester wearstrip | Cover: | N/A |
| Temperature Range: | -40 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| CWC-W 3in | 3" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 4in | 4" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 4.5in | 4.5" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 5in | 5" | N/A | 3.6" | 4:1 | 12 | 20 | 14 lbs |
| CWC-W 6in | 6" | N/A | 3.9" | 4:1 | 17 | 15 | 21.5 lbs |
| CWC-W 7in | 7" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 8in | 8" | N/A | 7.5" | 4:1 | 7.3 | 11 | 32.75 lbs |
| CWC-W 9in | 9" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 10in | 10" | N/A | 8.4" | 4:1 | 4 | 9 | 44.75 lbs |
| CWC-W 12in | 12" | N/A | 9.8" | 4:1 | 4.9 | 7 | 6.5 lbs |
| CWC-W 14in | 14" | N/A | 11.5" | 4:1 | 3.1 | 6 | 72.5 lbs |
| CWC-W 16in | 16" | N/A | 13" | 4:1 | 2.1 | 5 | 82.5 lbs |
| CWC-W 18in | 18" | N/A | 14.5" | 4:1 | 1.5 | 4 | 92.5 lbs |
| CWC-W 20in | 20" | N/A | 16.3" | 4:1 | 1.1 | 3 | 102.5 lbs |
| CWC-W 22in | 22" | N/A | N/A | N/A | N/A | N/A | N/A |
| CWC-W 24in | 24" | N/A | 20" | 4:1 | .6 | 2 | 122.5 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
