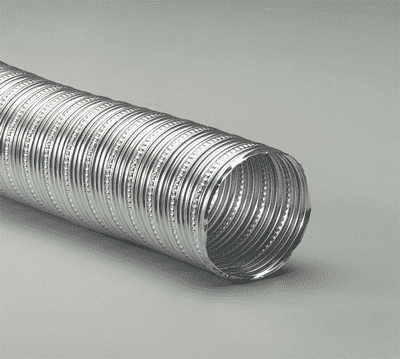

12-Bendway-A-5 by Flexaust | #4951200005 | Bendway A | Air and Fume Duct Hose | 12 inch | 5ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
SPECIFICATIONS
| Applications: | Circuit Board Cooling | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Single-ply helically corrugated aluminum alloy |
| Reinforcement: | Four-ply finished seam that is folded flat and crimped for tightness and strength | Cover: | N/A |
| Temperature Range: | -100 deg. F to 400 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 5 ft Reels | Part Number 10 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 5ft (Lbs/Ft) | Weight - 10ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Bendway A 2in | Bendway A 2in | 2" | .008" | 4" | N/A | N/A | N/A | 0.565 lbs | 1.13 lbs |
| Bendway A 3in | Bendway A 3in | 3" | .008" | 5.7" | N/A | N/A | N/A | 0.835 lbs | 1.67 lbs |
| Bendway A 4in | Bendway A 4in | 4" | .008" | 7.48" | N/A | N/A | N/A | 1 lbs | 2 lbs |
| Bendway A 5in | Bendway A 5in | 5" | .008" | 9.34" | N/A | N/A | N/A | 1.25 lbs | 2.5 lbs |
| Bendway A 6in | Bendway A 6in | 6" | .008" | 11.2" | N/A | N/A | N/A | 1.5 lbs | 3 lbs |
| Bendway A 7in | Bendway A 7in | 7" | .008" | 13.06" | N/A | N/A | N/A | 1.75 lbs | 3.5 lbs |
| Bendway A 8in | Bendway A 8in | 8" | .008" | 14.96" | N/A | N/A | N/A | 1.75 lbs | 3.5 lbs |
| Bendway A 9in | Bendway A 9in | 9" | .008" | 16.82" | N/A | N/A | N/A | 2 lbs | 4 lbs |
| Bendway A 10in | Bendway A 10in | 10" | .008" | 18.68" | N/A | N/A | N/A | 2.2 lbs | 4.4 lbs |
| Bendway A 12in | Bendway A 12in | 12" | .008" | 22.39" | N/A | N/A | N/A | 2.65 lbs | 5.3 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
