18-AWP-W-25 by Flexaust | #3861800025 | AWP-W Series | Air Duct Hose | 18 inch | 25ft
18-AWP-W-25 by Flexaust | #3861800025 | AWP-W Series | Air Duct Hose | 18 inch | 25ft

18-AWP-W-25 by Flexaust | #3861800025 | AWP-W Series | Air Duct Hose | 18 inch | 25ft

Sale price$905.10

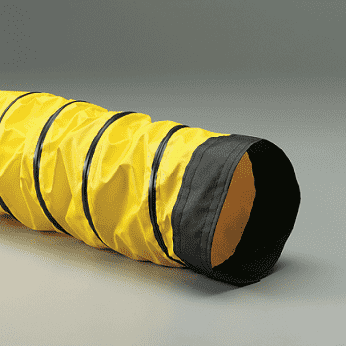

Flexaust Springflex AWP-W (AWPW) Air Duct Hose

Single-ply yellow acrylic coated polyester fabric hose reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Buy More, Save More!
Quantity Price Each
5–14 $850.79
15–29 $769.34
30+ $678.83
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Springflex
Series:
  • AWP-W
Color(s):
  • Black & Yellow
Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Sewn Cuff Standard/Enclosed
Belted Cuff		 Funnel Cuff Belt Loop & Pull Tabs Wire Rope/Nylon Ring Sto-Sack

SPECIFICATIONS

Applications: Aircraft, Fans & Blowers, Flame Retardant, Humidity Control, Mining, Utility Blowers SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply yellow acrylic coated polyester fabric
Reinforcement: Spring steel wire helix & black external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 325 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems.
  • Wearstrip offers additional external abrasion & drag resistance.
  • Great compressibility.
  • Retractability allows for convenient storage & easy transport in a fraction of its fully extended length.
  • Listed as UL 94V-0 flame retardant.
  • Shown with optional cuff.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
AWP-W 8in 8" N/A 5" 10:1 N/A 3 10 lbs
AWP-W 10in 10" N/A 6" 10:1 N/A 2 15 lbs
AWP-W 12in 12" N/A 7.5" 10:1 N/A 1.5 17.5 lbs
AWP-W 14in 14" N/A 8.5" 10:1 N/A 1.2 20 lbs
AWP-W 16in 16" N/A 9.5" 10:1 N/A 1 22.5 lbs
AWP-W 18in 18" N/A 10.5" 10:1 N/A .8 27.5 lbs
AWP-W 20in 20" N/A 11.5" 10:1 N/A .7 30 lbs
AWP-W 24in 24" N/A 14" 10:1 N/A .5 35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
