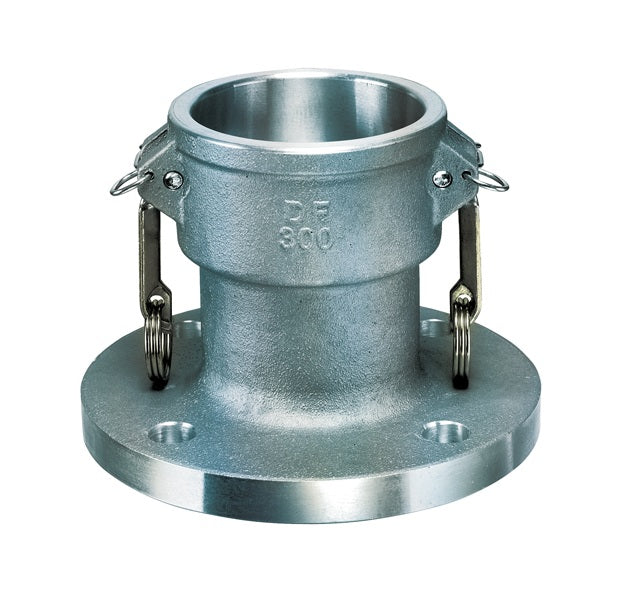

FL-AL-D200 by Kuriyama | FL-AL-D Series | Cam & Groove Adapter | 2" Coupler x 2" 150# ASA Flange | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | FL-AL-D Series | Coupler x 150# ASA Flange | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $64.00 |
| 40–79 | $57.88 |
| 80+ | $51.07 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
250
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- Forged brass handles.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
Number of Bolt Holes |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| FL-AL-D200 | 2" | 4 | 250 PSI | B85 Grade 383 | 2.35 lbs |
| FL-AL-D300 | 3" | 4 | 150 PSI | B85 Grade 383 | 5.07 lbs |
| FL-AL-D400 | 4" | 8 | 150 PSI | B85 Grade 383 | 7.94 lbs |
| FL-AL-D600 | 6" | 8 | 75 PSI | B85 Grade 383 | 12.89 lbs |
| FL-AL-D800 | 8" | 8 | 50 PSI | B108-92 356 | 16.50 lbs |
