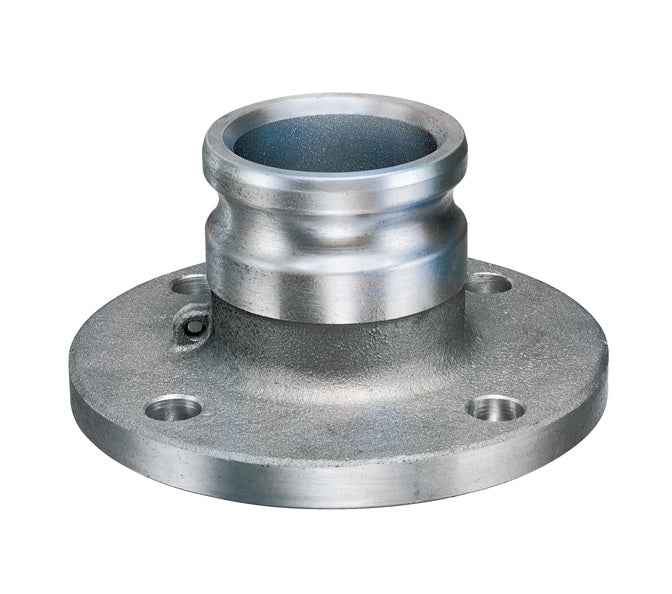

FL-AL-A300 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 3" Adapter x 3" 150# ASA Flange | Aluminum

FL-AL-A300 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 3" Adapter x 3" 150# ASA Flange | Aluminum

Sale price$80.33
Buy more, save moreDiscounts applied in cart/checkout.

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability.
Part Number Size
(in)		 Number of
Bolt Holes		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
FL-AL-A200 2" 4 250 PSI B85 Grade 383 3.05 lbs
FL-AL-A300 3" 4 150 PSI B85 Grade 383 3.86 lbs
FL-AL-A400 4" 8 150 PSI B85 Grade 383 5.86 lbs
FL-AL-A600 6" 8 75 PSI B85 Grade 383 9.92 lbs
FL-AL-A800 8" 8 50 PSI B108-92 356 14.50 lbs

Additional Product Data:

Series:
  • FL-AL-A Series
MAWP:

150

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
