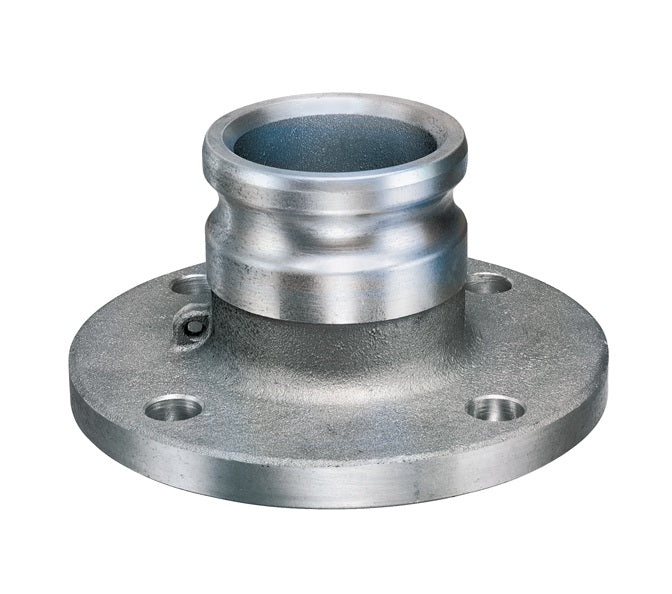

FL-AL-A200 by Kuriyama | FL-AL-A Series | Cam & Groove Adapter | 2" Adapter x 2" 150# ASA Flange | Aluminum
Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | FL-AL-A Series | Adapter x 150# ASA Flange | Aluminum
Kuriyama Camlock Couplings are intended for use in many industrial applications.
High quality design made to withstand rigorous applications found in industrial markets.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.77 |
| 40–79 | $37.77 |
| 80+ | $33.33 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
250
Shape:
Straight
Ends Configuration:
Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
| Part Number | Size (in) |
Number of Bolt Holes |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|---|
| FL-AL-A200 | 2" | 4 | 250 PSI | B85 Grade 383 | 3.05 lbs |
| FL-AL-A300 | 3" | 4 | 150 PSI | B85 Grade 383 | 3.86 lbs |
| FL-AL-A400 | 4" | 8 | 150 PSI | B85 Grade 383 | 5.86 lbs |
| FL-AL-A600 | 6" | 8 | 75 PSI | B85 Grade 383 | 9.92 lbs |
| FL-AL-A800 | 8" | 8 | 50 PSI | B108-92 356 | 14.50 lbs |
