FJXT-08-10 by Kurt Hydraulics | Jump Size | Female JIC | Swivel | for 1/2" Hose ID

FJXT-08-10 by Kurt Hydraulics | Jump Size | Female JIC | Swivel | for 1/2" Hose ID

Sale price$22.89

by Kurt Hydraulics
FJXT - 37 deg. JIC Female Swivel Long Straight

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $21.52
40–79 $19.46
80+ $17.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 5/8in Female JIC

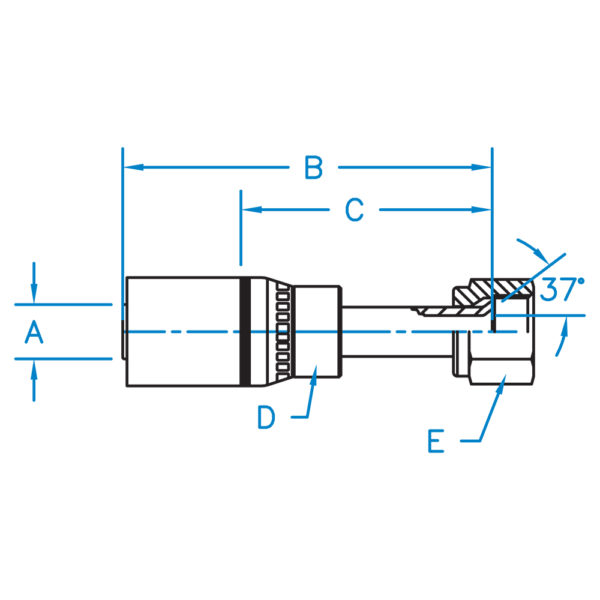

Part Number A B C D E Hose ID
(In)		 Thread
FJXT-04-04 0.250 2.975 1.72 5/8 9/16 1/4" 7/16-20
FJXT-04-05 0.250 2.975 1.72 5/8 5/8 1/4" 1/2-20
FJXT-06-05 0.375 3.2 1.7 11/16R 5/8 3/8" 1/2-20
FJXT-06-06 0.375 3.756 2.25 11/16R 11/16 3/8" 9/16-18
FJXT-06-08 0.375 3.89 2.39 3/4R 7/8 3/8" 3/4-16
FJXT-08-08 0.500 3.963 2.463 7/8 7/8 1/2" 3/4-16
FJXT-08-10 0.500 4.22 2.75 7/8 1.00 1/2" 7/8-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
