FJX90M-12-12 by Kurt Hydraulics | Female JIC | 90° Medium Drop Elbow | Swivel | for 3/4" Hose ID

FJX90M-12-12 by Kurt Hydraulics | Female JIC | 90° Medium Drop Elbow | Swivel | for 3/4" Hose ID

Sale price$27.24

by Kurt Hydraulics
FJX90M - 37 deg. JIC Female 90 deg. Bent Tube Swivel Medium Drop

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $25.61
40–79 $23.15
80+ $20.43
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Female JIC

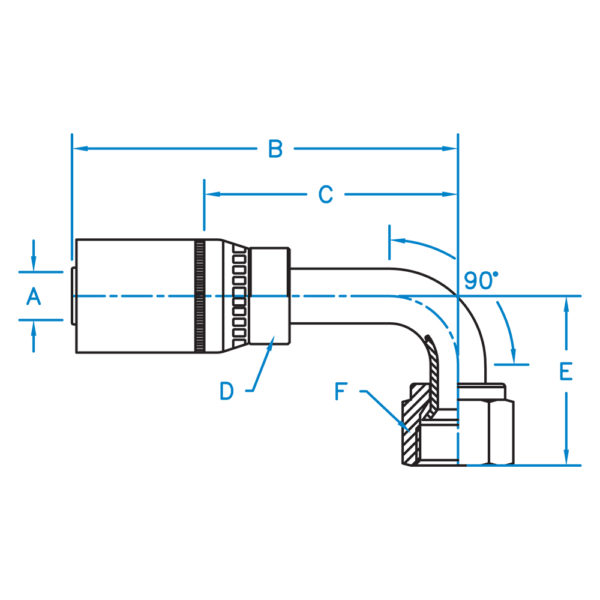

Part Number A B C D E F Hose ID
(In)		 Thread
FJX90M-04-04 0.25 2.975 1.72 5/8 1.26 9/16 1/4" 7/16-20
FJX90M-06-06 0.375 3.380 1.880 3/4 R 1.500 11/16 3/8" 9/16-18
FJX90M-08-08 0.500 3.750 2.250 7/8 1.614 7/8 1/2" 3/4-16
FJX90M-10-10 0.625 3.429 1.929 1-1/8 R 1.850 1.000 5/8" 7/8-14
FJX90M-12-12 0.750 3.889 2.296 1-1/8 2.283 1-1/4 3/4" 1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
