FJX90L-08-08 by Kurt Hydraulics | Female JIC | 90° Long Drop Elbow | Swivel | for 1/2" Hose ID

FJX90L-08-08 by Kurt Hydraulics | Female JIC | 90° Long Drop Elbow | Swivel | for 1/2" Hose ID

Sale price$17.24

by Kurt Hydraulics
FJX90L - 37 deg. JIC Female 90 deg. Long Drop Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $16.21
40–79 $14.65
80+ $12.93
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Female JIC

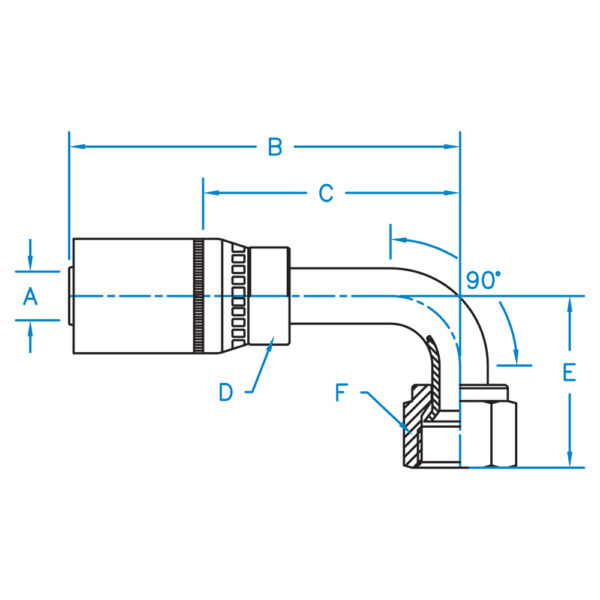

Part Number A B C D E F Hose ID
(In)		 Thread
FJX90L-04-04 0.250 2.318 1.720 5/8 0.830 9/16 1/4" 7/16-20
FJX90L-04-06 0.250 2.443 1.188 5/8 2.180 11/16 1/4" 9/16-18
FJX90L-06-04 0.375 2.563 1.063 3/4 1.800 9/16 3/8" 7/16-20
FJX90L-06-06 0.375 3.380 1.188 11/16 2.126 11/16 3/8" 9/16-18
FJX90L-06-08 0.375 3.630 2.18 3/4 2.520 7/8 3/8" 3/4-16
FJX90L-08-08 0.500 3.750 2.250 7/8 2.520 7/8 1/2" 3/4-16
FJX90L-08-10 0.500 3.500 2.000 7/8 2.755 1.000 1/2" 7/8-14
FJX90L-10-10 0.625 2.130 1.437 1-1/16 2.570 1.000 5/8" 7/8-14
FJX90L-12-12 0.750 3.777 2.420 1-3/8 4.330 1-1/2 3/4" 1-1/16-12
FJX90L-16-16 1.000 4.5 2.77 1-3/8 4.48 1-1/2 1.000" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
