FJX90L-04-06-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 3/8" Female 37° JIC Swivel | 90° Long Drop Elbow | Carbon Steel
Kurt Hydraulics
37° JIC Female 90° Long Drop Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.96 |
| 40–79 | $13.53 |
| 80+ | $11.94 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

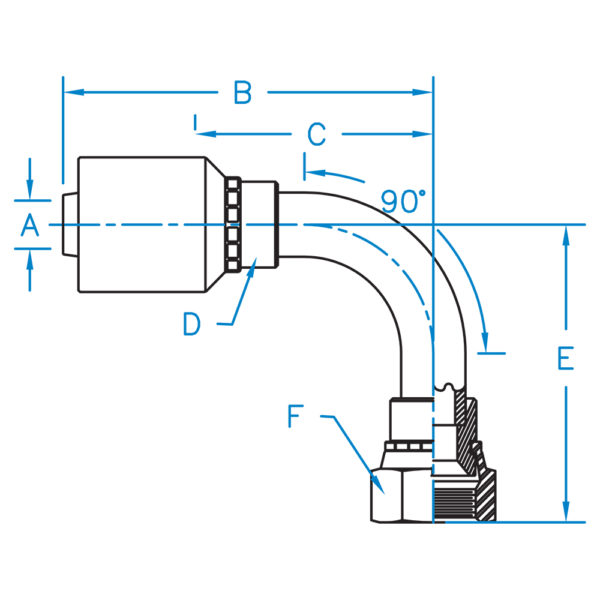

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FJX90L-04-04-K2 | 1/4" | 2.70" | 1.64" | 5/8" | 1.82" | 9/16" | 7/16" – 20 |
| FJX90L-04-06-K2 | 1/4" | 2.87" | 1.81" | 5/8" | 2.13" | 11/16" | 9/16" – 18 |
| FJX90L-06-04-K2 | 3/8" | 3.03" | 1.66" | 11/16" | 1.82" | 9/16" | 7/16" – 20 |
| FJX90L-06-06-K2 | 3/8" | 3.17" | 1.80" | 11/16" | 2.13" | 11/16" | 9/16" – 18 |
| FJX90L-06-08-K2 | 3/8" | 3.47" | 2.10" | 3/4" | 2.52" | 7/8" | 3/4" – 16 |
| FJX90L-08-08-K2 | 1/2" | 3.49" | 2.15" | 7/8" | 2.52" | 7/8" | 3/4" – 16 |
| FJX90L-08-10-K2 | 1/2" | 2.95" | 1.61" | 7/8" | 2.78" | 1" | 7/8" – 14 |
