FJX90B-0810-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" Female 37° JIC Swivel Block Style| 90° Elbow | Carbon Steel
Kurt Hydraulics
FJX90B - 37° JIC Female 90° Swivel Block Style
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $90.83 |
| 20–59 | $82.14 |
| 60+ | $72.47 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

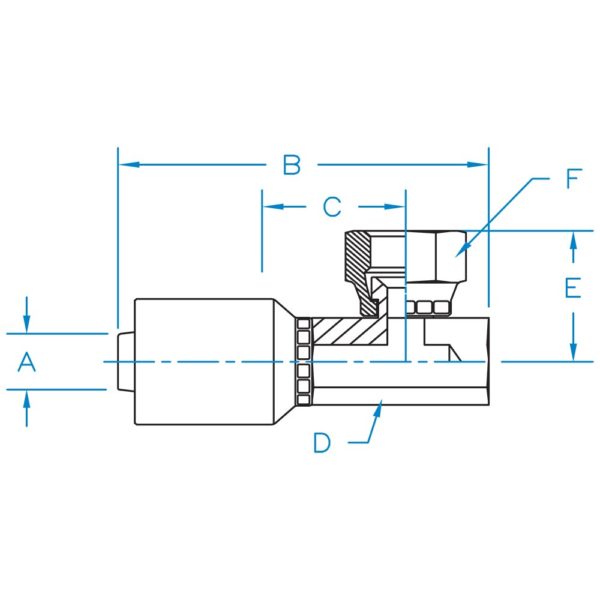

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FJX90B-0606-K2 | 3/8" | 3.01" | 1.11" | 13/16" | 1.16" | 11/16" | 9/16 – 18 |
| FJX90B-0608-K2 | 3/8" | 3.01" | 1.11" | 13/16" | 1.17" | 7/8" | 3/4 – 16 |
| FJX90B-0808-K2 | 1/2" | 2.64" | 0.80" | 15/16" | 1.36" | 7/8" | 3/4 – 16 |
| FJX90B-0810-K2 | 1/2" | 2.64" | 0.80" | 15/16" | 1.42" | 1" | 7/8 – 14 |
