FJX90B-08-10 by Kurt Hydraulics | Jump Size | Female JIC | 90° Elbow | Swivel | Block Style | for 1/2" Hose ID

FJX90B-08-10 by Kurt Hydraulics | Jump Size | Female JIC | 90° Elbow | Swivel | Block Style | for 1/2" Hose ID

Sale price$39.47

by Kurt Hydraulics
FJX90B - 37 deg. JIC Female 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $37.10
40–79 $33.55
80+ $29.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Hose Barb
  • 5/8in Female JIC

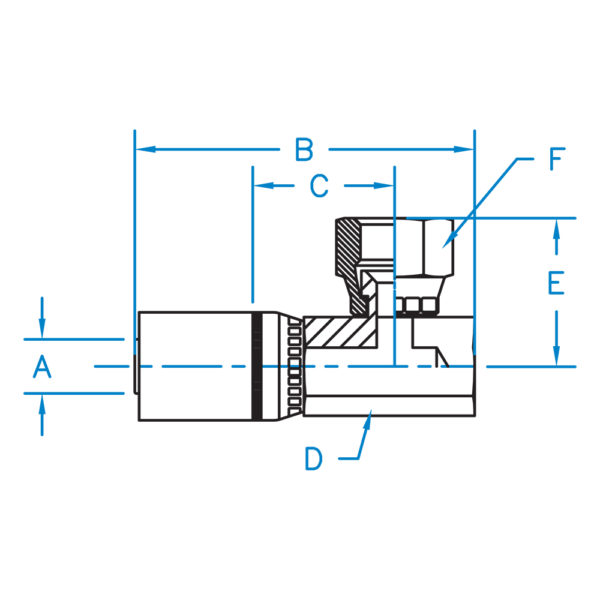

Part Number A B C D E F Hose ID
(In)		 Thread
FJX90B-06-06 0.375 N/A N/A N/A N/A N/A 3/8" 9/16-18
FJX90B-06-08 0.375 N/A N/A N/A N/A N/A 3/8" 3/4-16
FJX90B-08-08 0.500 N/A N/A N/A N/A N/A 1/2" 3/4-16
FJX90B-08-10 0.500 N/A N/A N/A N/A N/A 1/2" 7/8-14
FJX90B-10-10 0.625 N/A N/A N/A N/A N/A 5/8" 7/8-14
FJX90B-12-10 0.750 N/A N/A N/A N/A N/A 3/4" 7/8-14
FJX90B-12-12 0.750 N/A N/A N/A N/A N/A 3/4" 1-1/16-12
FJX90B-12-16 0.750 N/A N/A N/A N/A N/A 3/4" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
