FJX90-16-16 by Kurt Hydraulics | Female JIC | 90° Elbow | Swivel | for 1" Hose ID
by Kurt Hydraulics
FJX90 - 37 deg. JIC Female 90 deg. Bent Tube Swivel
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $37.09 |
| 40–79 | $33.54 |
| 80+ | $29.60 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

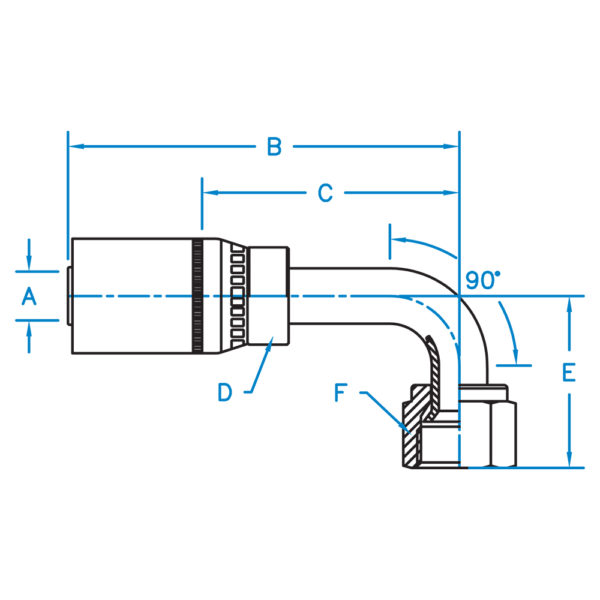

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FJX90-04-04 | 0.250 | 3.035 | 1.780 | 5/8 | 0.830 | 9/16 | 1/4" | 7/16-20 |
| FJX90-04-05 | 0.250 | 3.065 | 1.810 | 5/8 | 0.830 | 5/8 | 1/4" | 1/2-20 |
| FJX90-04-06 | 0.250 | 3.165 | 1.910 | 5/8 | 0.910 | 11/16 | 1/4" | 9/16-18 |
| FJX90-06-04 | 0.375 | 2.563 | 1.063 | 3/4 | 0.880 | 9/16 | 3/8" | 7/16-20 |
| FJX90-06-05 | 0.375 | 3.331 | 1.831 | 11/16 R | 0.827 | 5/8 | 3/8" | 1/2-20 |
| FJX90-06-06 | 0.375 | 3.380 | 1.880 | 11/16 | 0.860 | 11/16 | 3/8" | 9/16-18 |
| FJX90-06-08 | 0.375 | 3.630 | 2.130 | 3/4 | 1.120 | 7/8 | 3/8" | 3/4-16 |
| FJX90-08-06 | 0.500 | 2.870 | 1.182 | 7/8 | 1.130 | 11/16 | 1/2" | 9/16-18 |
| FJX90-08-08 | 0.500 | 3.750 | 2.250 | 7/8 | 1.130 | 7/8 | 1/2" | 3/4-16 |
| FJX90-08-10 | 0.500 | 3.250 | 1.750 | 7/8 | 1.230 | 1.000 | 1/2" | 7/8-14 |
| FJX90-08-12 | 0.500 | 3.938 | 2.250 | 1-1/8 | 1.830 | 1-1/4 | 1/2" | 1-1/16-12 |
| FJX90-10-10 | 0.625 | 3.350 | 2.000 | 1-1/16 | 1.260 | 1.000 | 5/8" | 7/8-14 |
| FJX90-10-12 | 0.625 | 3.943 | 2.063 | 1-1/8 | 2.280 | 1-1/4 | 5/8" | 1-1/16-12 |
| FJX90-12-10 | 0.750 | 3.484 | 1.891 | 1-1/8 | 1.230 | 1.000 | 3/4" | 7/8-14 |
| FJX90-12-12 | 0.750 | 3.761 | 2.296 | 1-1/8 | 1.830 | 1-1/4 | 3/4" | 1-1/16-12 |
| FJX90-12-16 | 0.750 | 4.193 | 2.313 | 1-3/8 | 2.500 | 1-1/2 | 3/4" | 1-5/16-12 |
| FJX90-16-16 | 1.000 | 4.424 | 2.129 | 1-3/8 | 2.210 | 1-1/2 | 1.000" | 1-5/16-12 |
| FJX90-20-20 | 1.250 | 5.750 | 3.750 | 1-3/4 | 3.050 | 2.000 | 1-1/4" | 1-5/8-12 |
