FJX90-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | 90° Elbow | Swivel | for 3/4" Hose ID

FJX90-12-12-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female JIC | 90° Elbow | Swivel | for 3/4" Hose ID

Sale price$47.38

by Kurt Hydraulics
FJX90-WHP - 37 deg. JIC Female 90 deg. Bent Tube Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $44.54
40–79 $40.27
80+ $35.54
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

90 Degree

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Female JIC

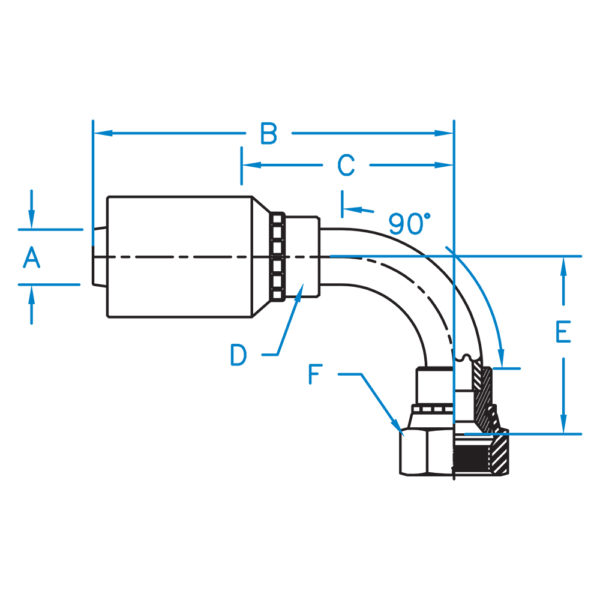

Part Number A B C D E F Hose ID
(In)		 Thread
FJX90-12-12-WHP 0.750 5.180 2.750 1-3/16 2.570 1-1/4 3/4" 1-1/16-12
FJX90-16-16-WHP 1.000 5.689 3.159 1-7/16 2.800 1-1/2 1.000" 1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
