FJX90-12-12-SST by Kurt Hydraulics | Female JIC | 90° Elbow | Swivel | PTFE Coupling | for 3/4" Hose ID
by Kurt Hydraulics
FJX90-SST - 37 deg. JIC Female 90 deg. Bent Tube Swivel - PTFE Couplings
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.60 |
| 40–79 | $28.58 |
| 80+ | $25.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

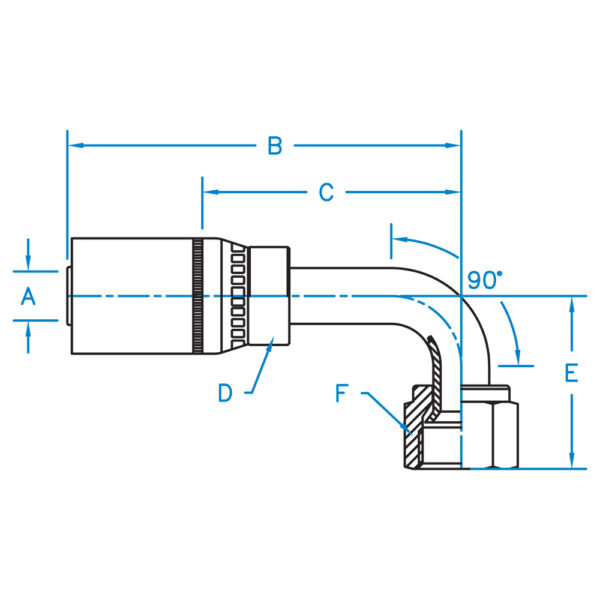

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FJX90-03-04-SST | 0.312 | N/A | N/A | N/A | N/A | N/A | 3/16" | 7/16-20 |
| FJX90-04-04-SST | 0.250 | 2.281 | 1.312 | 5/8 | 0.875 | 9/16 | 1/4" | 7/16-20 |
| FJX90-04-05-SST | 0.250 | 2.287 | 1.312 | 5/8 | 0875 | 9/16 | 1/4" | 1/2-20 |
| FJX90-04-06-SST | 0.250 | 2.438 | 1.187 | 5/8 | 1.125 | 11/16 | 1/4" | 9/16-18 |
| FJX90-05-04-SST | 0.312 | 3.025 | 1.715 | 5/8 | 0.830 | 9/16 | 5/16" | 7/16-20 |
| FJX90-05-06-SST | 0.312 | 3.174 | 1.864 | 5/8 | 0.906 | 11/16 | 5/16" | 9/16-18 |
| FJX90-06-04-SST | 0.375 | 2.281 | 1.312 | 5/8 | 0.875 | 9/16 | 3/8" | 7/16-20 |
| FJX90-06-06-SST | 0.375 | 2.625 | 1.187 | 3/4 | 1.125 | 11/16 | 3/8" | 9/16-18 |
| FJX90-07-06-SST | 0.437 | 3.334 | 1.864 | 3/4 | 0.906 | 11/16 | 7/16" | 9/16-18 |
| FJX90-07-08-SST | 0.437 | 3.626 | 2.156 | 7/8 | 1.130 | 7/8 | 7/16" | 3/4-16 |
| FJX90-08-08-SST | 0.500 | 2.938 | 1.317 | 7/8 | 1.375 | 7/8 | 1/2" | 3/4-16 |
| FJX90-08-10-SST | 0.500 | 3.062 | 1.531 | 1.000 | 1.000 | 1.000 | 1/2" | 7/8-14 |
| FJX90-10-10-SST | 0.625 | 3.062 | 1.437 | 1.000 | 1.000 | 1.000 | 5/8" | 7/8-14 |
| FJX90-10-12-SST | 0.625 | 3.875 | 2.062 | 1-1/8 | 2.312 | 1-1/4 | 5/8" | 1-1/16-12 |
| FJX90-12-12-SST | 0.750 | 3.875 | 2.062 | 1-1/8 | 2.312 | 1-1/4 | 3/4" | 1-1/16-12 |
| FJX90-16-16-SST | 1.000 | 4.750 | 2.312 | 1-1/2 | 2.500 | 1-1/2 | 1.000" | 1-5/16-12 |
