FJX90-04-04-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/4" Female 37° JIC Swivel | 90° Elbow | Carbon Steel
Kurt Hydraulics
37° JIC Female 90° Bent Tube Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $12.20 |
| 40–79 | $11.03 |
| 80+ | $9.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

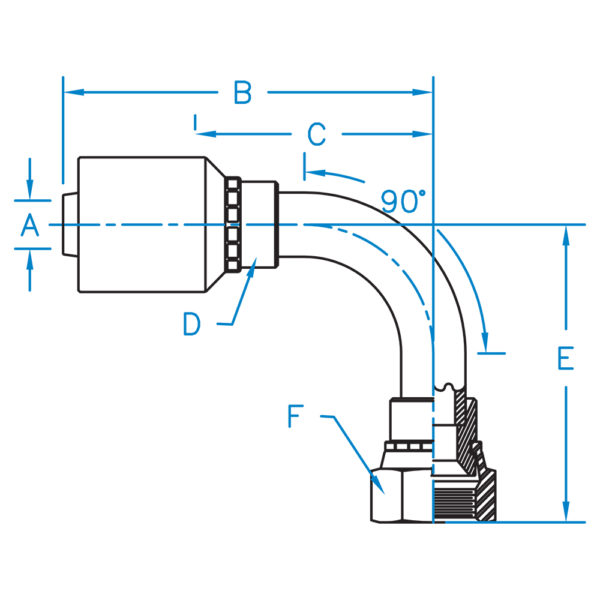

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FJX90-04-04-K2 | 1/4" | 2.70" | 1.64" | 9/16" | 0.83" | 9/16" | 7/16" – 20 |
| FJX90-04-05-K2 | 1/4" | 2.79" | 1.73" | 5/8" | 0.83" | 5/8" | 1/2" – 20 |
| FJX90-04-06-K2 | 1/4" | 2.67" | 1.61" | 11/16" | 0.85" | 11/16" | 9/16" – 18 |
| FJX90-06-04-K2 | 3/8" | 3.03" | 1.66" | 9/16" | 0.83" | 9/16" | 7/16" – 20 |
| FJX90-06-05-K2 | 3/8" | 3.12" | 1.75" | 11/16" | 0.83" | 5/8" | 1/2" – 20 |
| FJX90-06-06-K2 | 3/8" | 3.03" | 1.80" | 11/16" | 0.91" | 11/16" | 9/16" – 18 |
| FJX90-06-08-K2 | 3/8" | 3.42" | 2.04" | 7/8" | 1.12" | 7/8" | 3/4" – 16 |
| FJX90-08-06-K2 | 1/2" | 3.19" | 1.85" | 7/8" | 0.91" | 11/16" | 9/16" – 18 |
| FJX90-08-08-K2 | 1/2" | 3.49" | 2.15" | 1" | 1.13" | 7/8" | 3/4" – 16 |
| FJX90-08-10-K2 | 1/2" | 2.95" | 1.61" | 1-1/4" | 1.26" | 1" | 7/8" – 14 |
| FJX90-08-12-K2 | 1/2" | 3.50" | 2.16" | 1-1/2" | 1.83" | 1-1/4" | 1-1/16" – 12 |
