FJX45-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 45° Elbow | Swivel | for 2" Hose ID

FJX45-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 45° Elbow | Swivel | for 2" Hose ID

Sale price$262.56

by Kurt Hydraulics
FJX45-JJ - 37 deg. JIC Female 45 deg. Bent Tube Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–14 $246.81
15–29 $223.18
30+ $196.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

45 Degree

Ends Configuration:
  • 2in Hose Barb
  • 2in Female JIC

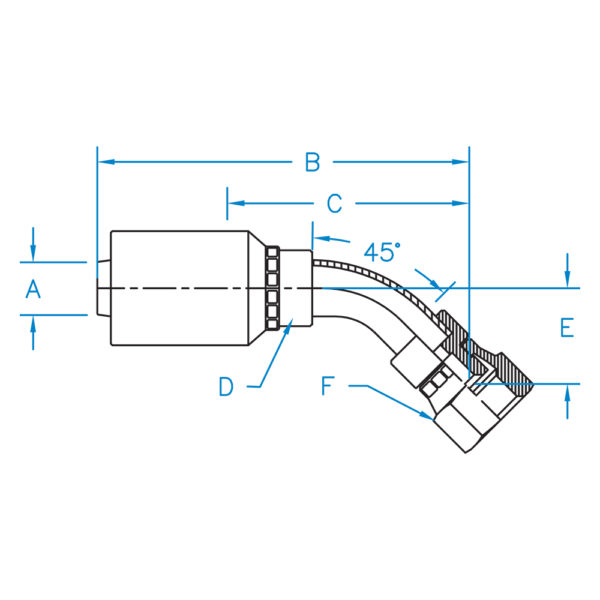

Part Number A B C D E F Hose ID
(In)		 Thread
FJX45-20-20-JJ 1.250 6.830 4.230 1-3/4R 1.380 2.000 1-1/4" 1-5/8 - 12
FJX45-24-24-JJ 1.500 7.06 4.41 2-1/8R 2.020 2-1/4 1-1/2" 1-7/8 - 12
FJX45-32-32-JJ 2.000 8.460 5.910 2-3/4R 2.710 2-7/8 2.000" 2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
