FJX45-06-04-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 3/8" Hose Barb x 1/4" Female 37° JIC Swivel | 45° Elbow | Carbon Steel
Kurt Hydraulics
37° JIC Female 45° Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.40 |
| 40–79 | $13.02 |
| 80+ | $11.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:

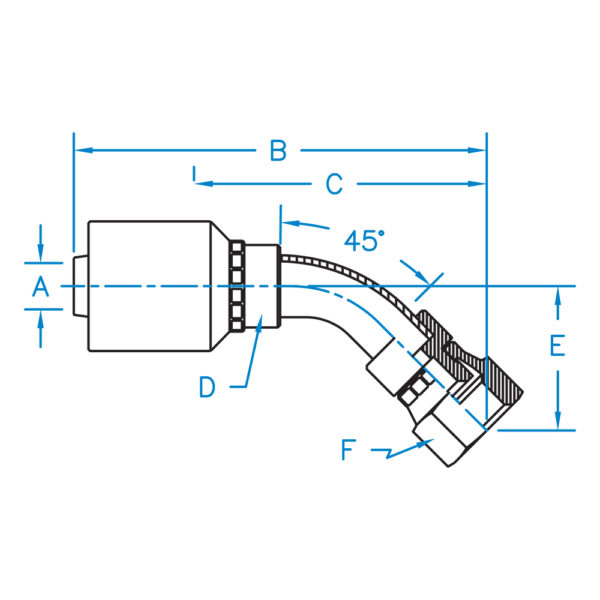

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FJX45-04-04-K2 | 1/4" | 2.86" | 1.80" | 9/16" | 0.39" | 9/16" | 7/16"-20 |
| FJX45-04-05-K2 | 1/4" | 2.89" | 1.83" | 5/8" | 0.39" | 5/8" | 1/2"-20 |
| FJX45-04-06-K2 | 1/4" | 2.93" | 1.87" | 11/16" | 0.43" | 11/16" | 9/16"-18 |
| FJX45-06-04-K2 | 3/8" | 3.19" | 1.82" | 11/16" | 0.39" | 9/16" | 7/16"-20 |
| FJX45-06-05-K2 | 3/8" | 3.22" | 1.85" | 11/16" | 0.39" | 5/8" | 1/2"-20 |
| FJX45-06-06-K2 | 3/8" | 3.26" | 1.89" | 11/16" | 0.43" | 11/16" | 9/16"-18 |
| FJX45-06-08-K2 | 3/8" | 3.60" | 2.23" | 7/8" | 0.59" | 7/8" | 3/4"-16 |
| FJX45-08-06-K2 | 1/2" | 3.28" | 1.94" | 3/4" | 0.43" | 11/16" | 9/16"-18 |
| FJX45-08-08-K2 | 1/2" | 2.99" | 2.31" | 7/8" | 0.59" | 7/8" | 3/4"-16 |
| FJX45-08-10-K2 | 1/2" | 3.30" | 1.96" | 1" | 0.63" | 1" | 7/8"-14 |
| FJX45-08-12-K2 | 1/2" | 3.56" | 2.22" | 1" | 0.83" | 1-1/4" | 1-1/16"-12 |
